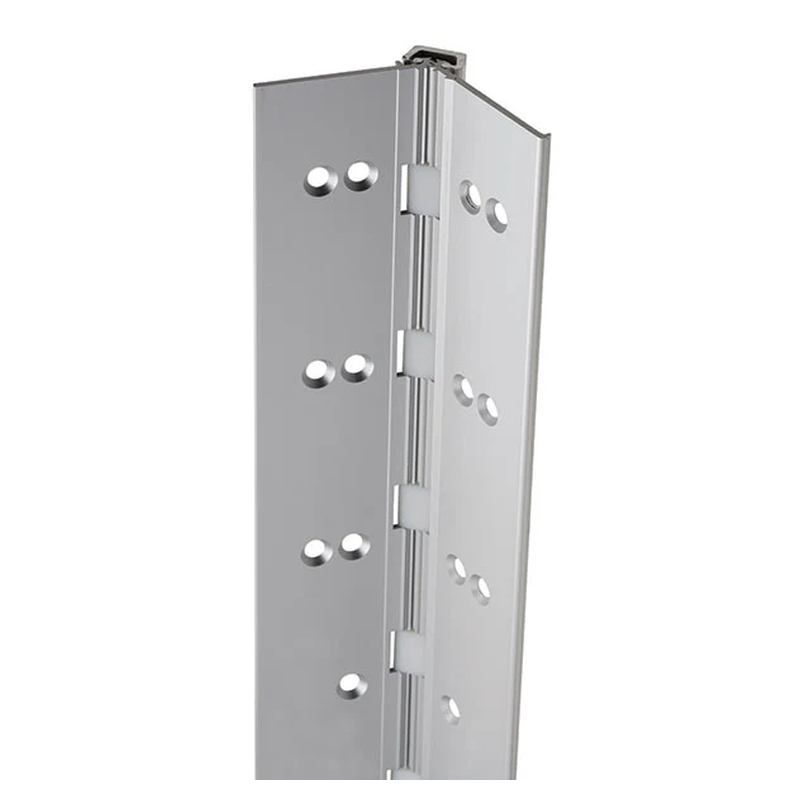

Ives 224HD-95-US28-EPT-RH-LOC22 Aluminum Continuous Gear Hinge, Full Mortise, Door Edge Protector, 1/16" Inset, 95", Von Duprin EPT Prep @ 22" Satin Aluminum Clear Anodized Finish, Right-Handed

The Ives 224HD-95-US28-EPT-RH-LOC22 is a heavy-duty aluminum continuous gear hinge built for high-traffic commercial openings where durability and reliable performance matter. Designed for full mortise applications, it features a 1/16" inset and integrated door edge protector that shields the door edge from wear while supporting the weight of the door across its entire length. This 95" right-handed hinge is prepped for a Von Duprin electric power transfer (EPT) at 22", making it ideal for openings requiring electrified hardware. Finished in Satin Aluminum Clear Anodized (US28), it combines a clean appearance with long-term corrosion resistance. The continuous gear design distributes stress evenly, reducing door sag and extending service life.

Features

• Continuous gear hinge construction distributes load evenly along the full length of the door.
• Full mortise mounting with a 1/16" inset for a concealed, flush installation.
• Integrated door edge protector guards against damage and wear.
• Factory prepped for a Von Duprin electric power transfer (EPT) at 22" to support electrified door hardware.
• Right-handed configuration for correct door orientation.
• Satin Aluminum Clear Anodized (US28) finish offers a durable, corrosion-resistant surface.
• 95" length suited for tall commercial door openings.

Functional Details

This continuous gear hinge pivots on a geared edge that runs the entire height of the door, eliminating the stress concentration points found in conventional butt hinges. The EPT prep at 22" allows wiring to pass between the frame and door for electrified locks, exit devices, and access control systems.
