Ives 3CB1HW 4.5X4.5 NRP 3 Knuckle Heavy Weight Concealed Bearing Hinge with Non Removable Pin

  • SKU: 3CB1HW4545651NRP

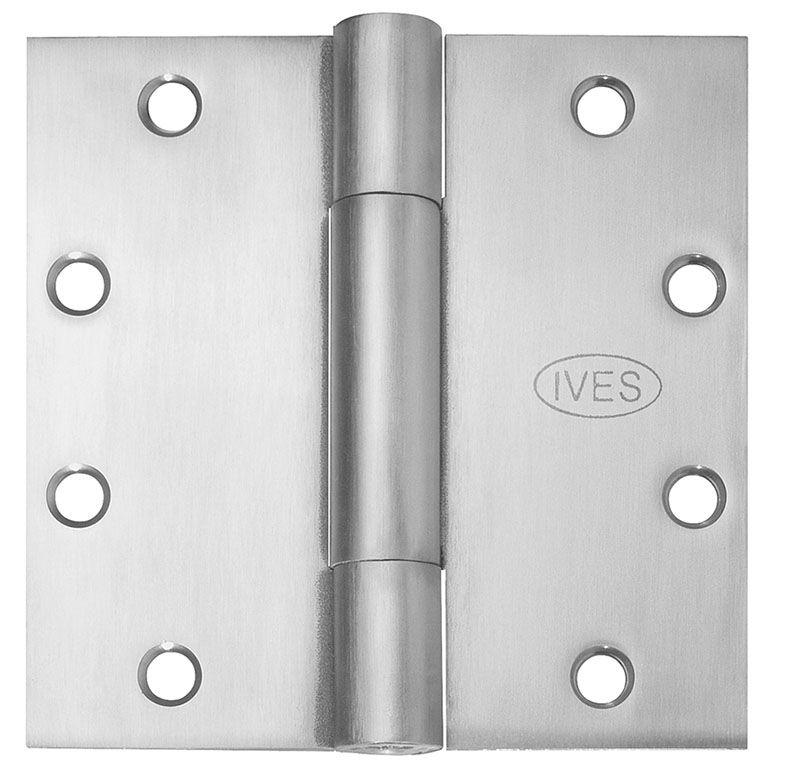

Ives 3CB1HW 4.5X4.5 651 NRP
Zoomed view
All IVES Products

Ives 3CB1HW 4.5X4.5 NRP 3 Knuckle Heavy Weight Concealed Bearing Hinge with Non Removable Pin

  • SKU: 3CB1HW4545651NRP
  • ✓
    In Stock
    In Stock
Your Price
$82.48/ea
0% Net 30 Days: Apply Now
Finish: US26-651 Bright Chrome (Steel)

Ives 3CB1HW 4.5X4.5 NRP 3-Knuckle Concealed Bearing Hinge, Heavy Weight, 4-1/2" x 4-1/2", Non-Removeable Pin,

  • Recommended for heavier weight doors (>150 lbs)
  • Recommended for high-frequency usage (400 cycles per day)
  • Made with two heavy-duty concealed nylon bearings
  • Recommended for use with a door closer
  • Packed with fasteners for hollow metal and wood doors

Ives 3CB1HW Certifications

  • Certified to ANSI/BHMA A156.1 for performance standards
  • Meets ANSI/BHMA 156.7 for template hinge dimensions
  • UL Classified for windstorm-rated assemblies - R37965
  • UL Listed, 3-hour fire doors Material substrate
  • Made from brass, 1040 steel, or 304 series stainless steel
Manufacturer Ives
SKU 3CB1HW 4.5X4.5
Installation Commercial
Origin —
Unit of Measure Each
Base Material Steel
Hinge Type Hinge, Full Mortise
Mounting Style Square
Knuckles 3
Bearing Type Concealed Bearing
Pin Type Removable
Tip Style Standard
Height 4-1/2"
Width 4-1/2"
Weight Heavy Weight
Product Type Hinges
Product Cut Sheet
