Description

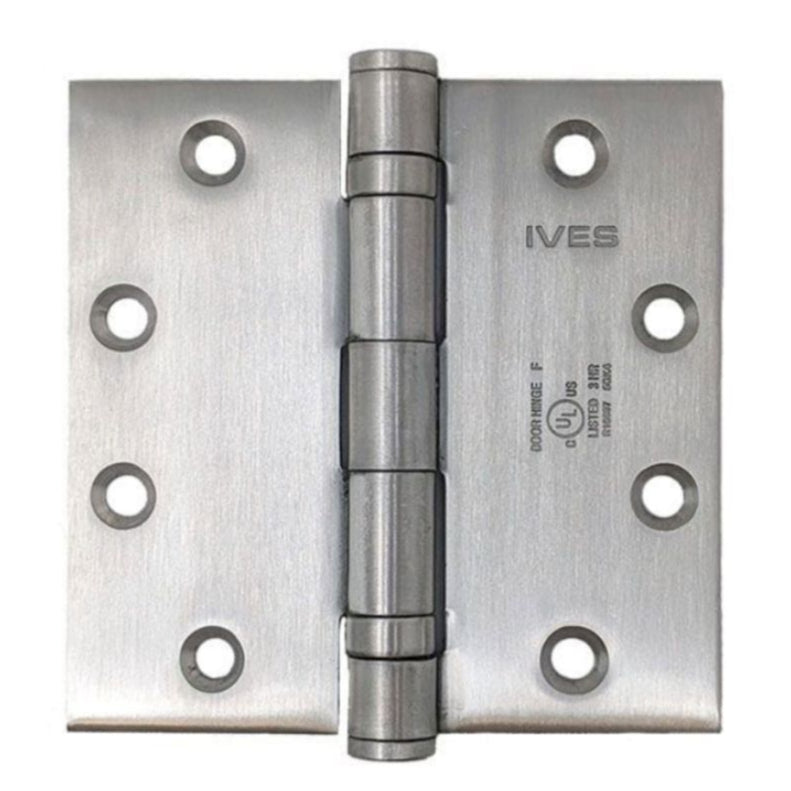

Ives 5BB1 4.5 X 4.0 630-NRP, Ball Bearing Hinge, 5-Knuckle, Standard Weight, 4-1/2 Inch x 4 Inch Non Removable Pin, Satin Stainless Steel Finish
The Ives 5BB1 4.5 X 4.0 630-NRP is a Ball Bearing Hinge with 5 knuckles, a satin stainless steel finish, and a non-removable pin. This hinge is a standard weight and measures 4-1/2 inches by 4 inches, making it a durable and reliable choice for door installation. Its high-quality construction and smooth operation are suitable for a variety of applications.
- Recommended for medium weight doors (<150 lbs)
- Recommended for medium frequency usage (<400 cycles per day)
- Made with two ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors
(12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS) - NRP: Non Removable Pin
Product Specs
| Manufacturer | Ives |
| SKU | 5BB1 4.5X4.5 630 NRP |
| Unit of Measure | Each |
| Installation | Commercial |
| Base Material | Stainless Steel |
Technical Specs
| Hinge Type | Hinge, Full Mortise |
| Knuckles | 5 |
| Bearing Type | Ball Bearing |
| Pin Type | Non-Removable |
| Weight | Standard Weight |
| Height | 4-1/2" |
| Width | 4 |
| Tip Style | Standard |
