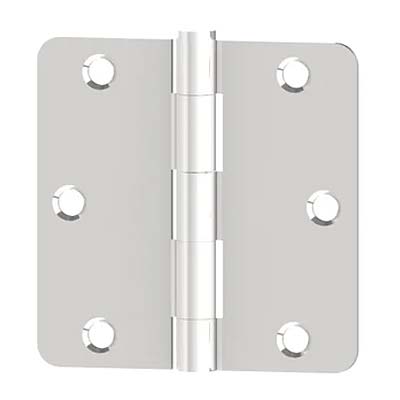

Ives 5BB1RC 14 4.5X4.0 630 5-Knuckle Ball Bearing Hinge Standard Weight, 4-1/2" x 4", Round Corners, Satin Stainless Steel

  • SKU: 5BB1RC144540630

Ives 5BB1RC 14 4.5X4.0 630 5-Knuckle Ball Bearing Hinge Standard Weight, 4-1/2" x 4", Round Corners, Satin Stainless Steel

  • SKU: 5BB1RC144540630
Sale price$70.59/ea
In Stock
In Stock

Ives 5BB1RC 14 4.5X4.0 630 5-Knuckle Ball Bearing Hinge Standard Weight, 4-1/2" x 4", Round Corners, Satin Stainless Steel

5BB1 5 Knuckle, ball bearing full mortise hinge
  • Recommended for medium weight doors (<150 lbs)
  • Recommended for medium frequency usage (<400 cycles per day)
  • Made with two ball bearing assemblies
  • Recommended for use with a door closer
  • Packed with fasteners for hollow metal and wood doors                  12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS                                            10-24 x 1/2 UFPHMS, 10 x 1 FPHWS (3.5x3.5 hinge size only)
Certifications
  • Certified to ANSI/BHMA A156.1 for performance standards
  • Meets ANSI/BHMA 156.7 for template hinge dimensions
  • UL Classified for windstorm rated assemblies - R37965
  • UL Listed, 3-hour fire door
Material substrate
  • Made from brass, 1040 steel, or 304 series stainless steel
