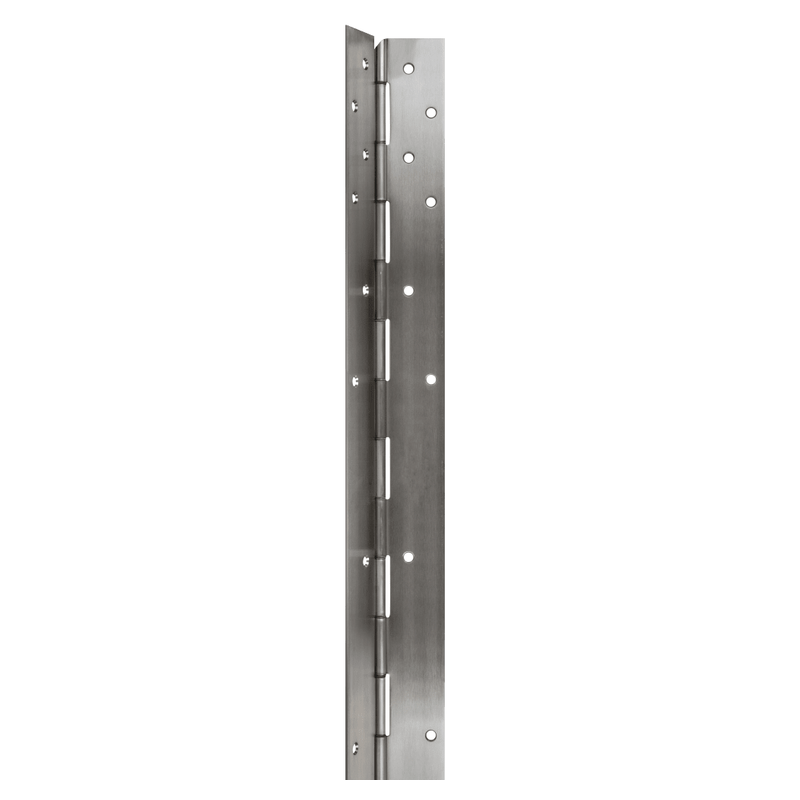

Ives 700HT-95-US32D Pin and Barrel Continuous Hinge, Concealed, 95 Inch Height, Hospital Tip, 1/8 in Inset, For 1 3/4 Tk Bevel Or Square Edge Door, Max 48 in Dr Width, Non Handed, 630 Satin Stainless Steel

The Ives 700HT-95-US32D Pin and Barrel Continuous Hinge delivers full-length support and dependable performance for demanding commercial openings. Built for concealed mounting, this 95-inch hinge distributes door weight evenly along its entire length, reducing wear on the door and frame while extending service life. It features a hospital tip design that eliminates sharp corners for safer, cleaner installations—ideal for healthcare and high-traffic environments. Designed for 1-3/4 inch thick doors with a bevel or square edge, it carries a 1/8 inch inset and supports doors up to 48 inches wide. The non-handed, satin stainless steel construction offers corrosion resistance and a durable, professional finish.

Features

• Pin and barrel continuous hinge provides smooth, reliable operation across the full height of the door.
• Concealed mounting creates a clean appearance when the door is closed.
• Hospital tip design removes sharp edges for improved safety and easier cleaning.
• Full-length support distributes weight evenly to minimize sag and frame stress.
• Non-handed construction simplifies ordering and installation for either door swing.
• Satin stainless steel finish resists corrosion in heavy-use settings.

Functional Details

This continuous hinge runs the full 95-inch height of the opening, allowing the pin and barrel knuckles to carry and pivot the door load along the entire edge. The concealed configuration keeps hardware out of sight when closed, while the 1/8 inch inset and hospital tip are matched to 1-3/4 inch thick doors with bevel or square edges up to 48 inches wide.
