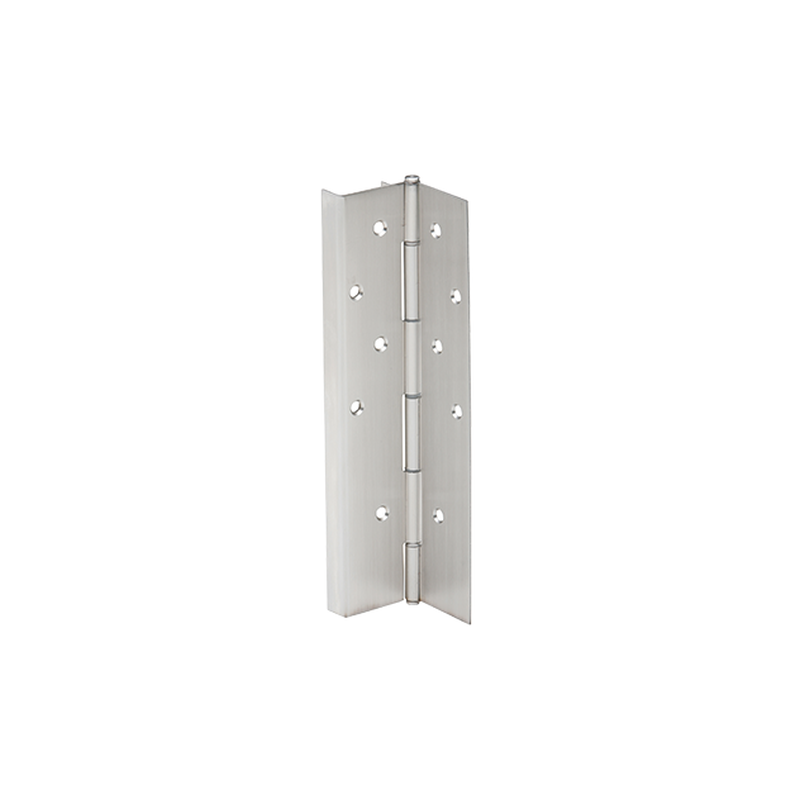

Ives 711-83-US32D Pin and Barrel Continuous Hinge, 83 Inch Height, Swing Clear Flush Mount, Satin Stainless Steel Finish

The Ives 711-83-US32D is a pin and barrel continuous hinge engineered for high-traffic commercial openings where durability and smooth operation matter. Built with a swing clear flush mount design, it allows the door to swing completely clear of the frame opening, making it ideal for hospitals, healthcare facilities, and ADA-compliant doorways that require maximum clear passage. This 83-inch model fits standard 1-3/4-inch thick square edge doors and is finished in satin stainless steel (US32D) for lasting corrosion resistance and a clean appearance. UL listed and featuring hospital tips, it delivers the strength and reliability expected from a continuous hinge while distributing door weight evenly along the full length of the frame.

Features

• Swing clear flush mount design lets the door clear the opening for full clearance.
• Pin and barrel construction provides smooth, consistent operation under heavy use.
• Continuous hinge distributes door weight evenly to reduce sag and wear.
• Hospital tips offer a clean, snag-free finish suited to healthcare environments.
• 83-inch height designed for standard commercial door openings.
• Satin stainless steel (US32D) finish resists corrosion and maintains appearance.
• UL listed for use on fire-rated and life-safety openings.

Functional Details

The swing clear flush mount configuration positions the hinge so the door leaf swings fully clear of the frame, maximizing the usable width of the opening. This is especially valuable in hospital corridors and accessible routes where bed, cart, and wheelchair clearance is critical. The pin and barrel design pivots on a continuous barrel for long-term stability on frequently used doors.

Included Components

Supplied as a complete continuous hinge assembly with hospital tips and the necessary fasteners for flush mount installation on 1-3/4-inch square edge doors.
