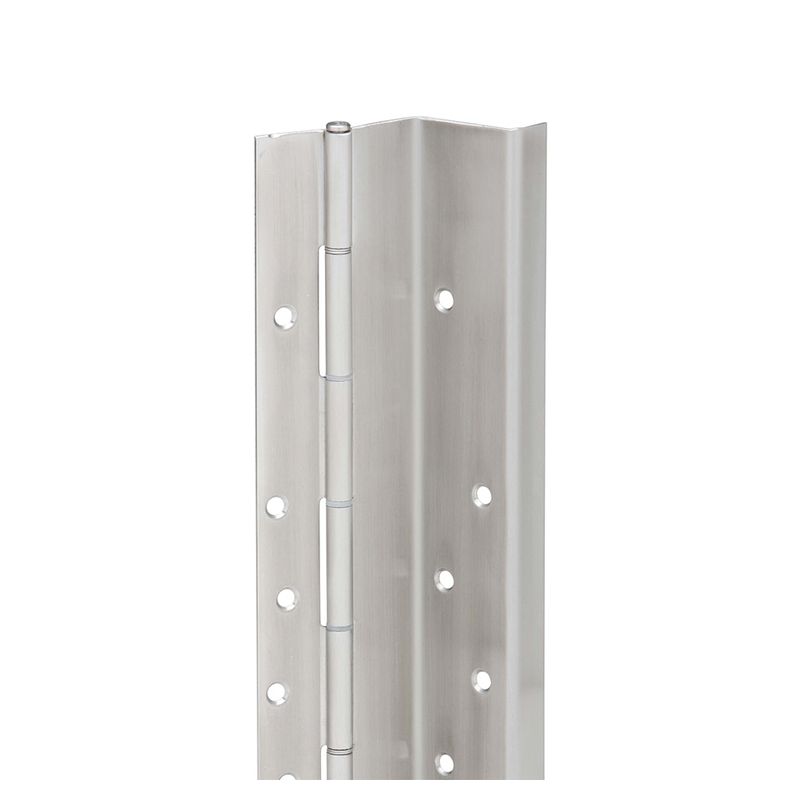

Ives 711HT-95-US32D Pin and Barrel Continuous Hinge, Hospital Tip, UL Listed, 95 Inch Height, Hospital Tips, Swing Clear Flush Mount, For 1 3/4 tk Square Edge Door, Max 48 in Dr Width, Non Handed, 630 Satin Stainless Steel Finish

The Ives 711HT-95-US32D Pin and Barrel Continuous Hinge is engineered for high-traffic openings where durability and clean operation matter most. This 95-inch swing clear flush mount hinge distributes door weight evenly along the full length of the frame, reducing stress on the door and eliminating the sag common with conventional butt hinges. Designed for 1-3/4 inch thick square edge doors up to 48 inches wide, it features hospital tips that provide a smooth, snag-free profile suited to healthcare and sanitary environments. The non-handed design simplifies ordering and installation, while the UL listing and 630 satin stainless steel finish deliver dependable, corrosion-resistant performance.

Features

• Full-length pin and barrel construction spreads door load across the entire opening for long-lasting, maintenance-free performance.
• Swing clear flush mount design allows the door to clear the opening for maximum usable width.
• Hospital tips offer a smooth, tamper-resistant profile ideal for healthcare and institutional settings.
• UL listed for reliable use in fire-rated and code-sensitive applications.
• Non-handed construction fits both left-hand and right-hand openings.
• Durable 630 satin stainless steel finish resists corrosion and wear.

Functional Details

This continuous hinge mounts flush to the door and frame while allowing the door to swing clear of the opening, maximizing passage width for accessibility. The hospital tip configuration provides a safe, streamlined edge throughout the hinge length.

• Swing clear flush mount for 1-3/4 inch thick square edge doors.
• Hospital tips top and bottom.
• Maximum door width 48 inches.
