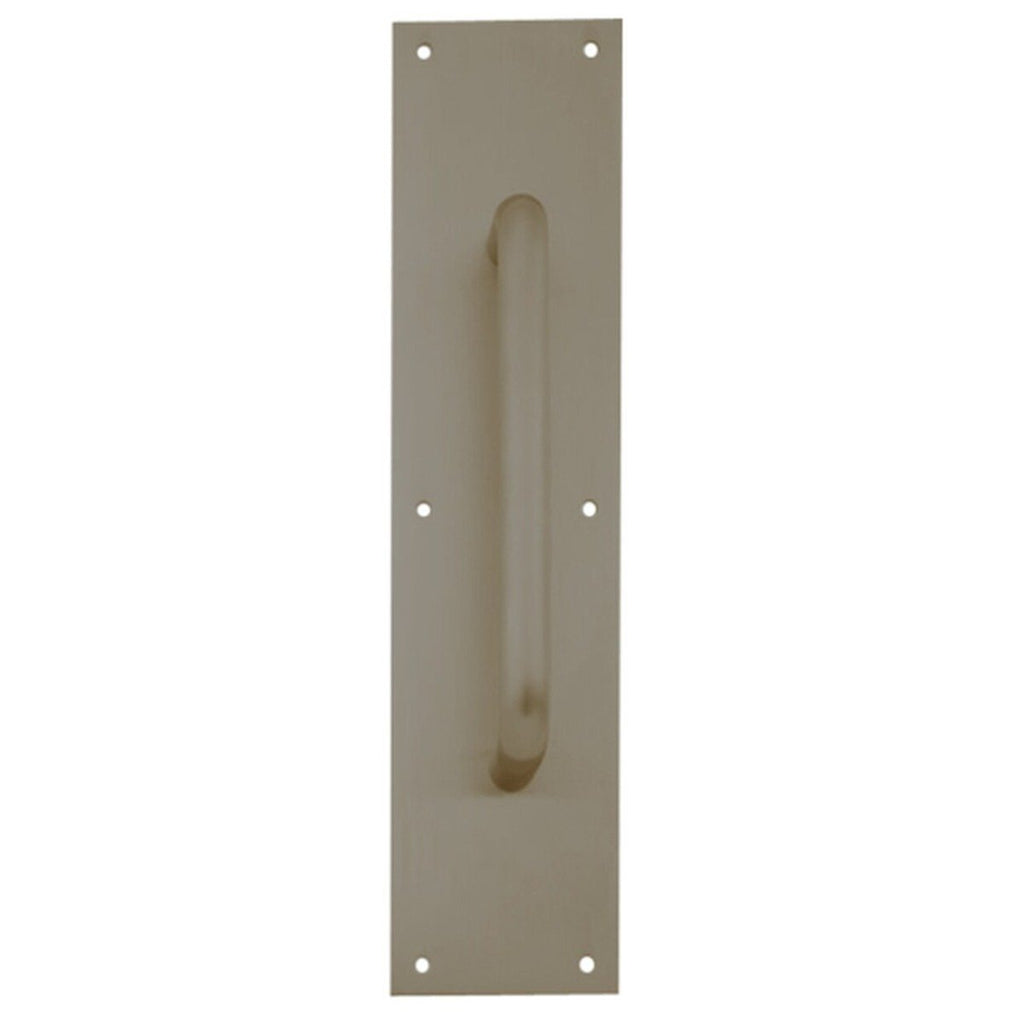

Ives 8302 8 US10B 3.5X15 Pull Plate, 8" CTC, 3/4" Diameter, 1-1/2" Clearance, 3-1/2" x 15", Oil Rubbed Bronze

  • SKU: 83028US10B3515

Ives 8302 8 US10B 3.5X15 Pull Plate, 8" CTC, 3/4" Diameter, 1-1/2" Clearance, 3-1/2" x 15", Oil Rubbed Bronze

  • SKU: 83028US10B3515
Sale price$219.92/ea
In Stock
In Stock
Visa Mastercard American Express Discover Shop Pay Apple Pay

8302-8 US10B 3.5x15 Ives Pulls and Push Plates Pull Plate, 8" CTC, 3/4" Diameter, 1-1/2" Clearance, 3-1/2" x 15", Oil Rubbed Bronze.

Mounting

  • Heavy-duty mounting hardware exceeds industry standards
  • 3/8-16 mounting hardware
  • Specify door thickness. Standard mounting hardware for a door thickness of 1-1/2" to 1-3/4" unless otherwise specified. Optional package available for 2" and 2-1/4" thick doors.
  • Comes standard with thru-bolt screws and decorative washers.
  • Optional mounting hardware available (see general information section for details) A, F, G, I, L, N
  • Mounting hardware for other door thicknesses is available as an engineering special, consult customer service.
  • Standard mounting package for plate:
    • #6 X 5/8 oval head screws
  • Optional TEK/TORX package
    • #6 X 5/8 Self-drilling, Self-tapping screws
    • #6 X 5/8 Torx screws
  • Plate prepped with 2 pull mounting holes spaced at 8" or 10" center to center

Meets ANSI A156.06
