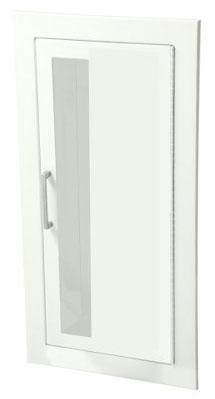

JL Industries 1015-V-10 Ambassador Series - Steel Fire Extinguisher Cabinet - Vertical Duo Panel Clear Tempered Glass with Pull Handle
JL's Most Popular Painted Steel Cabinet with 10 Door Styles For Recessed, Semi-Recessed, or Surface-Mounted Installation.
- Vertical duo panel clear acrylic with pull handle
- Cold rolled steel with white powder-coat finish standard
- Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with a zinc-plated handle and roller catch.
|Door and Trim Construction:||Cold rolled steel with white powder-coat finish standard. Flush cabinet |
doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and
|Trim Style:||Flat Trim|
|Tub:||Constructed of cold rolled steel with white powder-coat finish standard.|
|Tub I.D. :||Width:10 1/2'' Height: 24'' Depth: 6''|
|Wall Opening Non-Rated: ||Width:11-1/2'' Height: 25'' Depth: 6-1/4''|
|Frame O.D.: ||13 7/8'' x 27 3/8''|
|Accommodated Extinguishers:|| |
Cosmic & Galaxy 2.5 - 10
Mercury 2.5. - 5
