Description

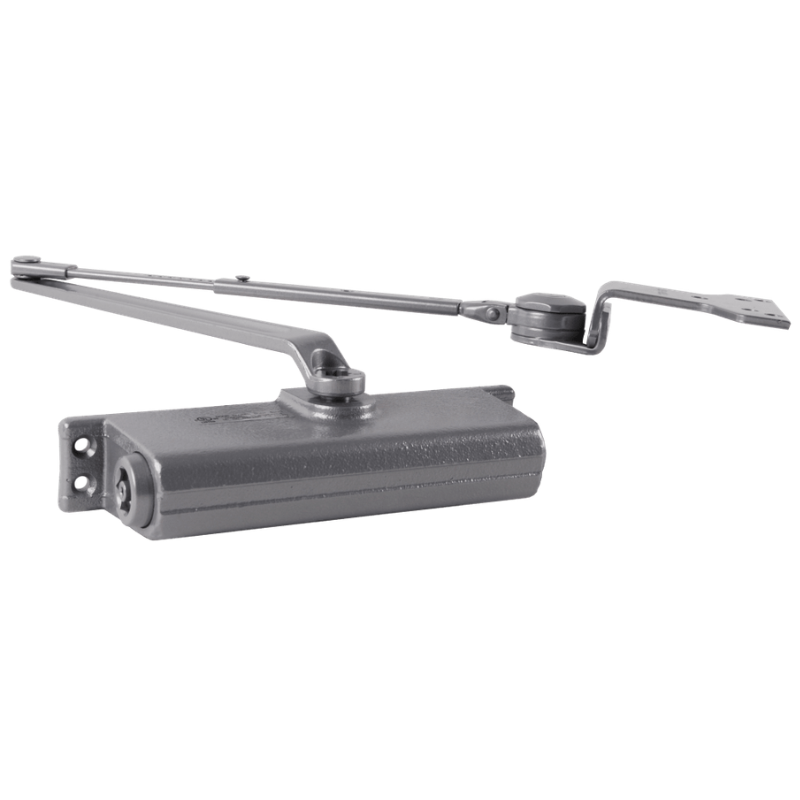

LCN 1261-H Surface Door Closer, Hold Open Arm, Push or Pull Side Regular or Top Jamb Mounting, 180 Degree Swing, Size 1 to 5, No Cover, All Weather Fluid, Grade 1, Non Handed
The LCN 1261-H Surface Door Closer is a heavy-duty Grade 1 closer designed for reliable control on a wide range of commercial openings. This model features a hold open arm and supports push or pull side regular or top jamb mounting for flexible installation. With a full 180 degree swing capability, adjustable Size 1 to 5 spring power, and non handed design, it fits many standard applications without requiring handing changes. The closer is supplied with no cover and uses all weather fluid to help maintain consistent performance across varying temperatures, making it a practical choice for demanding interior or exterior door conditions.
Features
- LCN 1261-H is a surface door closer built for commercial applications requiring Grade 1 performance.
- The hold open arm helps keep the door in an open position at a selected degree of opening.
- It can be installed for push or pull side regular or top jamb mounting to suit different frame and door conditions.
- The closer is designed for up to 180 degree swing where job conditions permit.
- Adjustable Size 1 to 5 spring power allows the closer to be tailored to the opening requirements.
- No cover configuration provides an exposed closer body appearance.
- All weather fluid supports more consistent operation in changing temperature conditions.
- The non handed design allows installation on either right or left hand doors.
Functional Details
The hold open function on the LCN 1261-H uses a hold open arm that can keep the door at a selected open position during normal operation. This is useful in applications where temporary hands-free access is needed, while still providing the controlled closing performance of a surface-mounted closer when the hold open feature is released.
- Hold-open points up to 140°.
- Single lever arm and shoe.
- Non-handed.
Arm Type Details
This model uses a hold open arm configuration based on a single lever arm and shoe. It is intended for regular arm or top jamb mounting on push or pull side applications, providing controlled closing with the added convenience of holding the door open at a selected point within the arm's hold-open range.
Included Components
The LCN 1261-H includes the closer body and hold open arm assembly. This version is supplied with no cover.
Product Specifications
| Manufacturer | LCN |
|---|---|
| Series | 1260 Series |
| Model | 1261-H |
| SKU | 1261-H |
| Product Type | Surface Door Closer |
| Arm Type | Hold Open Arm |
| Mounting | Push or Pull Side Regular or Top Jamb Mounting |
| Door Swing | 180 Degree Swing |
| Closer Size | Size 1 to 5 |
| Cover | No Cover |
| Fluid Type | All Weather Fluid |
| Grade | Grade 1 |
| Handing | Non Handed |
| ANSI Number | A156.4 |
| UL Listing Type | UL and cUL listed |
| BAA Qualified | Yes |
| Origin | Made in USA |
| Unit of Measure | Each |
| Limited Warranty | 30 Years |
Technical Specifications
| Series Number | 1260 |
|---|---|
| Model Number | 1261-H |
| Spring Size Range | 1 to 5 |
| Maximum Door Swing | 180° |
| Hold-Open Points | Up to 140° |
| Mounting Type | Regular Arm, Top Jamb |
| Handing | Non-handed |
| Arm Construction | Single lever arm and shoe |
| Closer Body Material | Cast iron cylinder |
| Piston Material | Heat treated steel piston |
| Mounting Hole Pattern | 9-1/16 in. x 3/4 in. |
| Door Thickness Compatibility | 1-3/4 in. recommended |
| Opening Type | Interior or exterior doors |
| Fluid | All weather fluid |
| Performance Standard | ANSI A156.4 Grade 1 |
