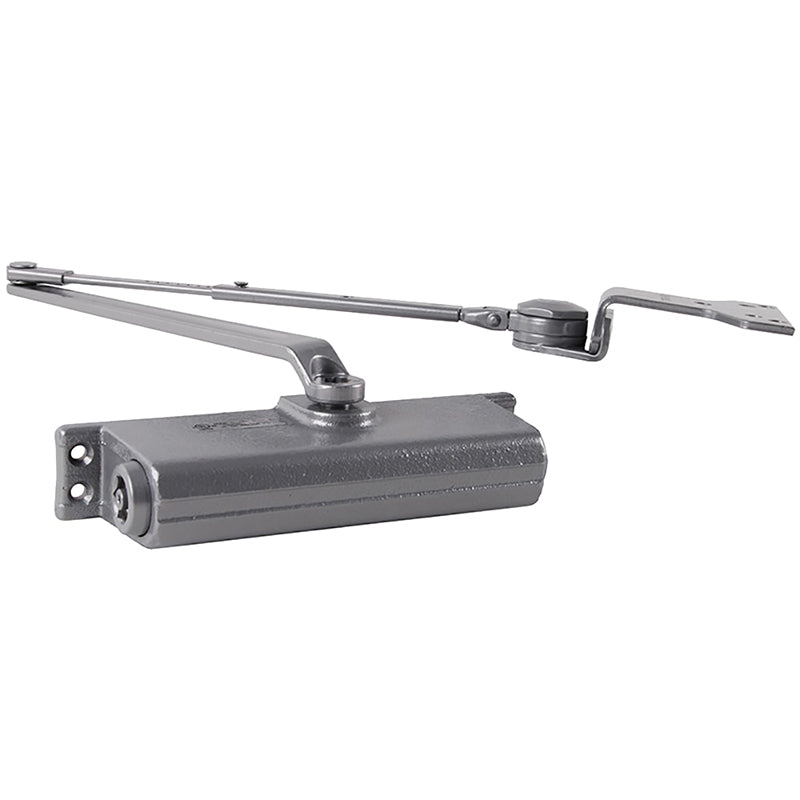

LCN 1261 HW/PA Hold Open Arm with Parallel Arm Shoe Door Closer
The LCN 1261 Door Closer HW/PA Hold Open PA Shoe, Surface Mounted Commercial Light To Medium Door Closer. Tested and certified under ANSI Standard A156.4, grade one, The LCN 1261 Features a Cast Iron n All weather fluid, This Door Closer Is Non-handed, The spring power of a 1261 cylinder is field adjustable from size 1 through size 5 and is shipped adjusted to size 3. See Manufactures Specifications For Additional Information. See Manufactures Specifications For Additional Information And Product Options. Aluminum/689 Finish, Brass 696 Finish, Light Bronze 691 Finish, Dark Bronze 695 Finish
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron closer with dual mounting capabilities. 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4'6" and exterior doors to 3'6"
- Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional SlimLine cover
