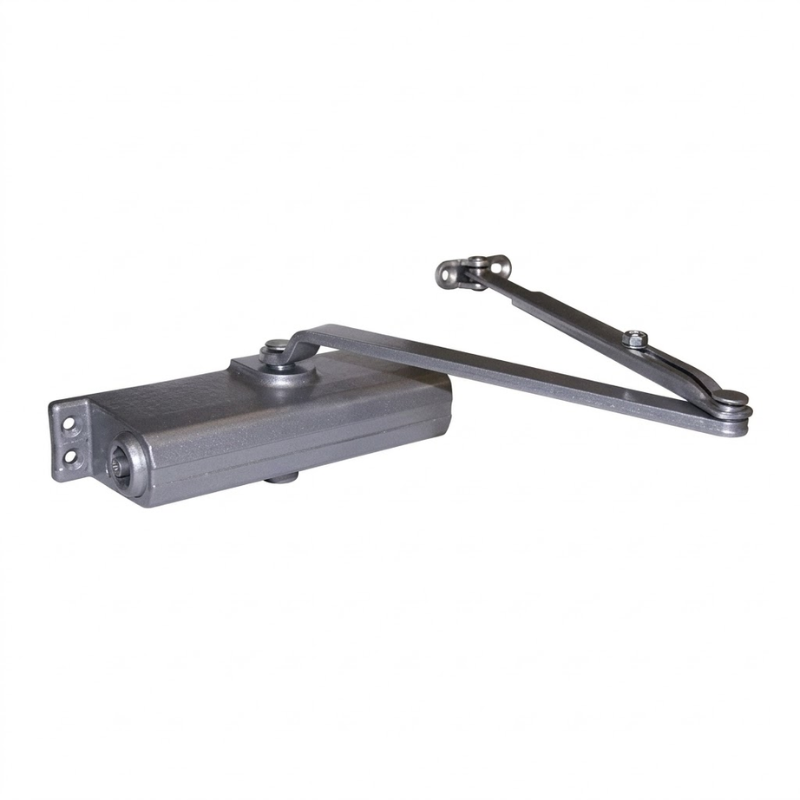

LCN 1261-HW/PA Surface Door Closer, Hold Open Arm With Parallel Arm Shoe, Push or Pull Side Mounting (Tri Mount), Up To 180 Degree Swing, Size 1 to 5, No Full Cover, All Weather Fluid, Grade 1, Non Handed
The LCN 1261-HW/PA Surface Door Closer is a heavy-duty, Grade 1 commercial door closer designed for high-traffic environments such as schools, hospitals, offices, and government facilities. Featuring a versatile tri-mount design (regular arm, top jamb, or parallel arm) and a hold-open arm with parallel arm bracket (HWPA), this non-handed closer provides flexible installation on both push and pull sides while allowing doors to be held open at an adjustable position for convenience and accessibility. The adjustable Size 1–5 spring ensures compatibility with a wide range of interior and exterior doors, while all-weather hydraulic fluid delivers consistent performance in extreme temperatures. Built with a durable cast aluminum body, forged steel arm, and standard LCN 1260 Series footprint, the 1261-HW/PA offers smooth, controlled closing with adjustable backcheck and speed controls, making it an ideal solution for demanding commercial applications requiring reliability, ADA compliance, and long-term performance.
Features:
- Standard 1260 series closer shipped with hold open arm, parallel arm shoe, a shaft cover, and self reaming and tapping screws.
- Non-sized (1-5) cylinder is adjustable for interior doors up to 4’6” in width and exterior doors to 3’6” in width
- Meets ADA requirements when adjusted to Size 1
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
Hold Open Arm with Parallel Arm Shoe (HWPA)
The 1260-3049 Hold Open Arm (H) is a non-handed arm that allows the door to be held open at an adjustable position, designed for hinge side, top jamb, or parallel arm mounting.
- Non-handed
- Mounts hinge side, top jamb or parallel arm
- Hold open adjustable at shoe
