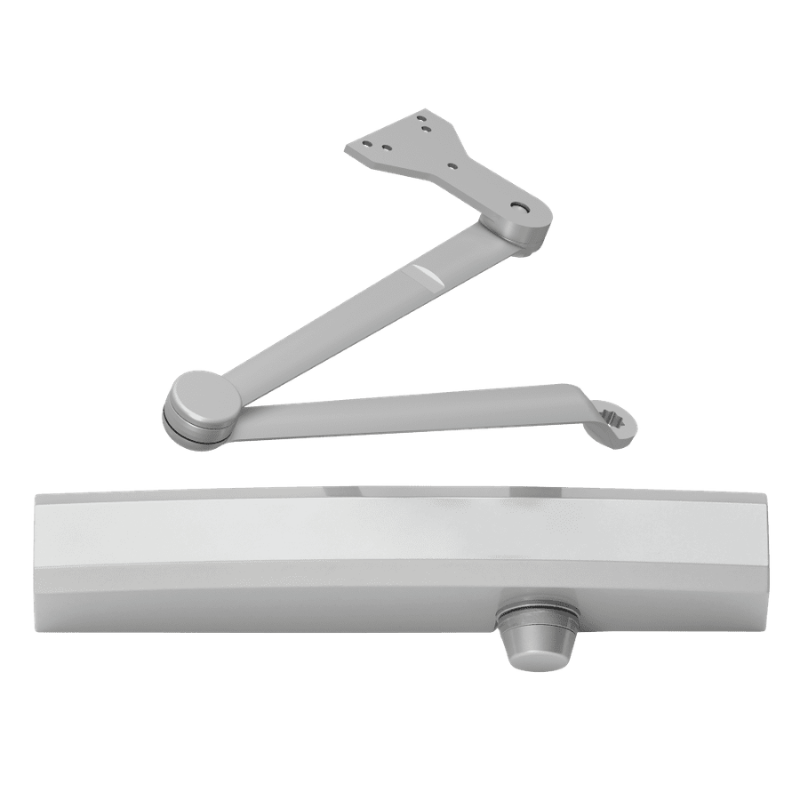

LCN 1450-HEDA Surface Mounted Door Closer, Extra Heavy Duty Hold Open Double Lever Arm Push Side Mounted, Size 1-6 Adjustable, Non-Handed, Full Plastic Cover, Grade 1

The LCN 1450-HEDA is a heavy-duty surface mounted door closer built for high-traffic commercial openings that demand reliable, controlled operation. It features an extra duty hold open double lever arm designed for push side mounting, letting doors stay open at a preset point while still closing securely when needed. With an adjustable spring size range of 1 through 6, this non-handed closer adapts to a wide variety of door widths and weights. The full plastic cover gives it a clean, finished look, and its Grade 1 ANSI/BHMA certification confirms it meets the highest standard for durability and performance in demanding applications.

Features

• Extra duty hold open double lever arm for dependable push side installations.
• Adjustable spring sizes 1 through 6 to suit different door types and conditions.
• Non-handed design simplifies stocking and installation on either hand of door.
• Full plastic cover provides a clean, professional appearance.
• Grade 1 rated for heavy commercial use.
• Cast iron closer body for long-term strength and reliability.

Functional Details

The hold open arm allows the door to be held in the open position at a selected point along the arm's travel, releasing to close when manually pushed past that point. This makes it ideal for openings where doors need to remain open during periods of high use.

• Hold open point adjustable at the arm
• Separate valves control closing speed, latch speed, and backcheck
• Adjustable spring power sizes 1 through 6

Arm Type Details

The Extra Duty Hold Open (HEDA) double lever arm is a heavier version of the standard double lever arm, engineered to withstand abuse in demanding environments. Mounted on the push side of the door, it combines controlled closing with a mechanical hold open feature for added convenience.

Included Components

Each closer ships with the closer body, extra duty hold open double lever arm, full plastic cover, and standard mounting hardware for push side installation.
