Description

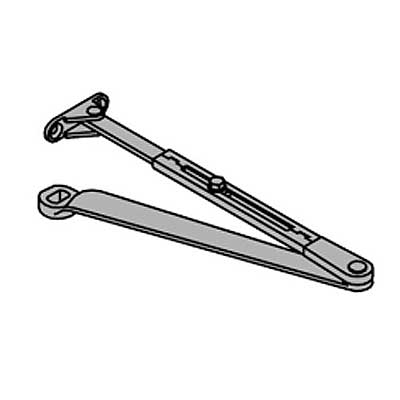

LCN 4010-3077-695 Regular Arm Dark Bronze 695 Finish
The LCN 4010-3077-695 is a Regular Arm for LCN 4010 Series Surface Mounted Closers and comes in a Dark Bronze 695 finish.
4010 Series Surface Mounted Closers
The 4010 is the best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.
The Surface-mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.
- Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See the Options tab for options.
- Sized cylinders for interior doors to 5'0" and exterior doors to 4'0".
- Non-sized cylinder (4011) adjustable for interior doors to 4'6" and exterior doors to 3'6".
- Closer mounts hinge side, specify right or left swinging door.
- Corner brackets available. See the Options tab for options.
- 4011 cylinder meets ADA requirements.
- Standard or optional custom powder coat finish.
- The optional plated finish on the metal cover, arm, and fasteners.
- Optional SRI primer for installations in corrosive conditions is available with powder coat only.
- The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
- Tested and certified under ANSI Standard A156.4, grade one.
Product Specs
| Product Specs | |
| Vendor | Allegion |
| Manufacturer | LCN |
| SKU | 4010-3077 695 |
| Unit of Measure | Each |
| Base Material | VARIES |
| BAA Qualified | Yes |
| Finish |
695 |
| Finish Description | Dark Bronze Painted |
| Finish Family | Dark Bronze |
Technical Specs
| Technical Specs | |
| Mounting Style | Regular or Top Jamb |
| Hold Open | No |
| Arm Type | Regular Arm |
| Hand | Non-Handed |
| Product Type | Door Closer Arms |
