Description

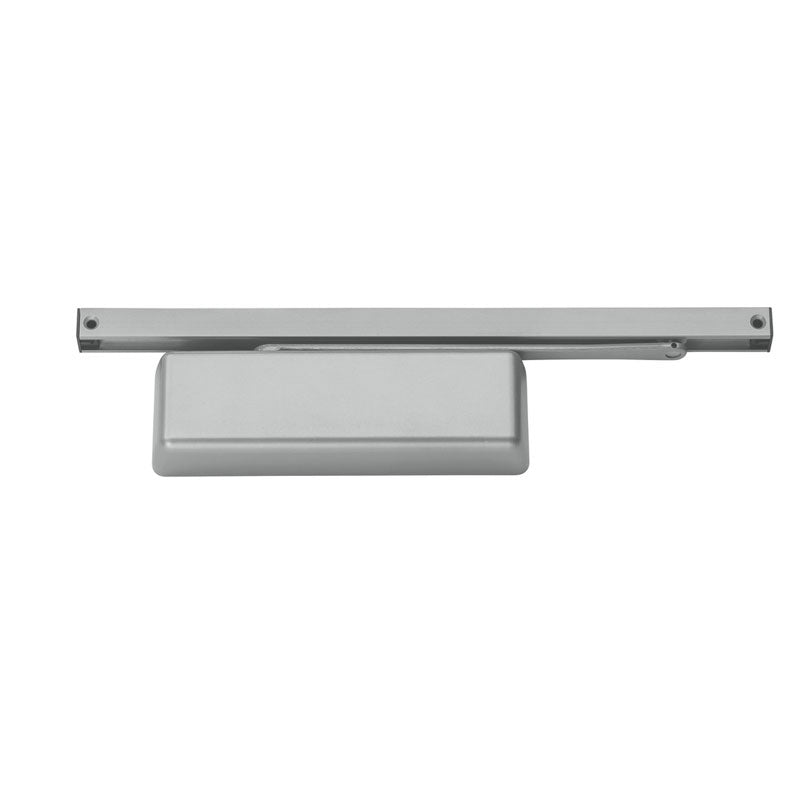

The LCN 4011T-DE-689 is a Double Egress Track Door Closer, that is Pull Side Mounted, has a Slide Track Arm Double Egress, is Handed, and comes in an Aluminum Finish.
4010T Series Surface Mounted Closers
The 4011T is LCN’s best-performing heavy-duty closer designed specifically for institutional and other rugged high-traffic applications.
The 4010, 4020, and 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each is designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards, and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm, and fasteners. They also feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.
- The 4010 Series mounts hinge pull side.
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
- Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
- Closer mounts hinge side, specify right or left swinging door.
- Corner brackets are available. See the Options tab for options.
- 4011 cylinder meets ADA requirements.
- Standard or optional custom powder coat finish.
- The optional plated finish on the metal cover, arm and fasteners.
- Optional SRI primer for installations in corrosive conditions is available with a powder coat only.
- The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
- Tested and certified under ANSI Standard A156.4, Grade 1.
Product Specs
| Manufacturer | LCN |
| SKU | 4011T-DE 689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | VARIES |
| BAA Qualified | Yes |
| Limited Warranty | 30 Years |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Pull Side |
| Mounting Style | Regular |
| Hold Open | No |
| Arm Type | Slide Track Arm Double Egress |
| Hand | RH or LH |
| Degree Swing | 100 Deg. |
| Cover | Full Plastic |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
