Description

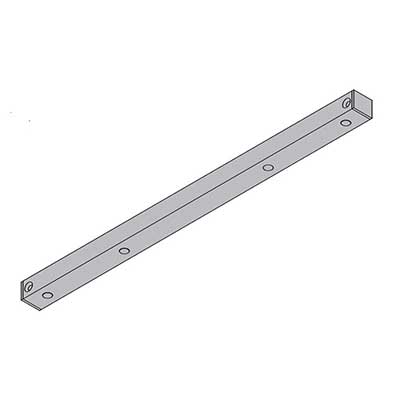

LCN 4040SEH-3038 24V 689 - Hold Open Track, Non-handed, Non-sized Closer/Holder, Single Point Hold-Open, US28/689 Aluminum Finish
The LCN 4040SEH-3038 24V 689 is a Long Track Arm For LCN 4040SE Series Fire/Life Safety Closers/Holders and comes in Aluminum (689) finish.
4040SE Series Fire/Life Safety Closers/Holders
The 4040SE Series features 2 mounting options.
The 4040SE is a heavy-duty, non-handed, non-sized closer/holder designed to provide single point hold-open for fire and smoke barrier doors.
- Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify) SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.
- Non-sized cylinders for interior doors to 4'0".
- Hold-open force is adjustable.
- Momentary on/off switchboard assembly for testing door release also provides over-voltage protection. Field replaceable.
- Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
- Closer mounts on either push or pull side of the door.
- Non-handed for mounting on either right or left-hand door.
- Concealed or surface wiring.
- Interfaces with alarm systems. Consult the factory for full details.
- Standard or optional custom powder coated finishes on cover and arm.
- Optional plated finishes
Product Specs
| Vendor | Allegion |
| Manufacturer | LCN |
| SKU | 4040SE-3038SEL-24V-689 |
| Installation | Commercial |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
