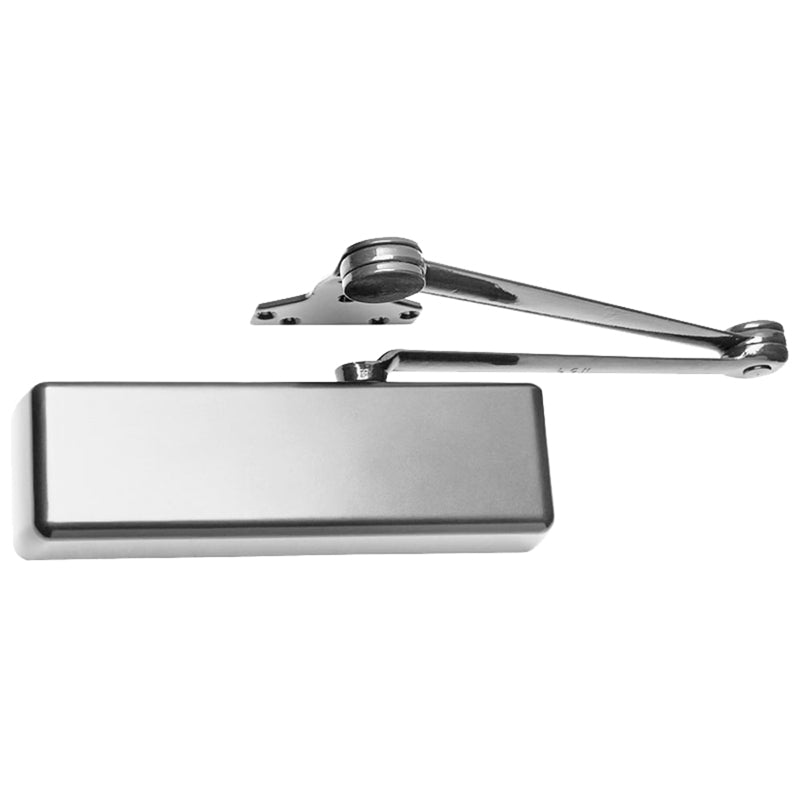

The LCN 4040XP-HEDA-TBSRT is a Heavy Duty Closer equipped with Super Smoothee technology and an Extra Duty Hold Open Arm.
TBSRT: Through Bolt Self Reaming and Tapping Screws
The 4040XP is LCN's most durable and flexible heavy-duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets a new standard for reliability, longevity, and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that's stronger, smarter, and delivers remarkable value in a variety of applications.
The patented green dial on the 4040XP makes spring adjustments fast, easy and foolproof. The all-weather fluid reduces maintenance and ensures consistent performance through every season. High-traffic doors call for heavy-duty closers and closers that won't let you down no matter how many people go through the door or how hard they kick, push or slam against it.
Features
Certifications |
Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act |
Body Construction |
Cast Iron Body; Full Complement Bearings; 1-1/2" Diameter Piston; 3/4" Diameter Double Heat Treated; Pinion Journal |
Fluid |
All-Weather Liquid X Fluid |
Handing |
Non-Handed |
Templating |
Peel-n-Stick templates - 2-1/4" x 5" Mounting Hole Pattern |
Size |
Adjustable Spring Size 1-6, includes Patented Green Dial |
Warranty |
30 years |
Cover |
Plastic, Standard; Metal, Optional |
Fasteners |
Self Reaming and Tapping Screws (SRT) |
Mounting |
Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side) |
Arms |
Regular Arm |
Finishes/Colors/ Powder Coat |
Aluminum (689); Statuary Bronze (690); Light Bronze (691); Black (693); Dark Bronze (695); Brass (696); Custom colors optional; Optional SRI primer - powder coat only n Optional plated finishes |
Butt Hinges |
Should not exceed 5" (127 mm) in width |
Auxiliary Stop |
Recommended at a hold-open point or where a door cannot swing beyond 120 ° |
Top Rail |
|
Head Frame |
Less than 3-1/2" (89 mm) requires PLATE, 4040XP-18TJ; With the flush ceiling, use PLATE, 4040XP-18G. Either plate requires 1-3/4" (44 mm) minimum |
Maximum Opening |
Templating allows up to 120 °; hold-open points 85 ° up to 120 ° with hold-open arm. |
Delayed Action |
Incorporates standard 4041 cylinders, without XP cylinder; Delays closing from 120 ° to 70 °; Delay time adjustable up to approximately 1 minute |
Mounting Details - EDA and CUSH Mounting
Clearance |
4040XP-62EDA is 5-1/2" (140 mm) from door face. 6" (152 mm) for CUSH |
Head Frame |
Flush or rabetted requires CUSH FLUSH PANEL ADAPTER, 4040XP-419 |
CUSH ARM |
Requires SHOE SUPPORT, 4040XP-30 for fifth screw anchorage where the reveal is less than 3-1/16 Ì‹ (78 mm) |
Delayed Action |
|
Manufacturer | LCN |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
Application | Hold Open Extra Duty Arm |
Base Material | Varies |
UL Listing Type | UL 10C |
ANSI Number | A156.4 |
BAA Qualified | Yes |
Limited Warranty | 30 Years |
Fire Rated | 3 Hours {A} |
Type | Surface |
Technology | Hydraulic |
Mounting Location | Push Side |
Mounting Style | Parallel Arm |
Hold Open | Yes |
Hold Open Type | Friction |
Degree Hold Open | Adjustable |
Closer Size | 1 to 6 |
Arm Type | Parallel Arm Heavy Duty Friction Hold |
Hand | Left Hand |
Degree Swing | 180 Deg. |
Back Check | Adjustable |
Delay | No |
Cover | Plastic |
Screw Type | Self Tapping |
Through Bolts | No |
Cold Weather Fluid | Yes |
Product Type | Surface Closers |
