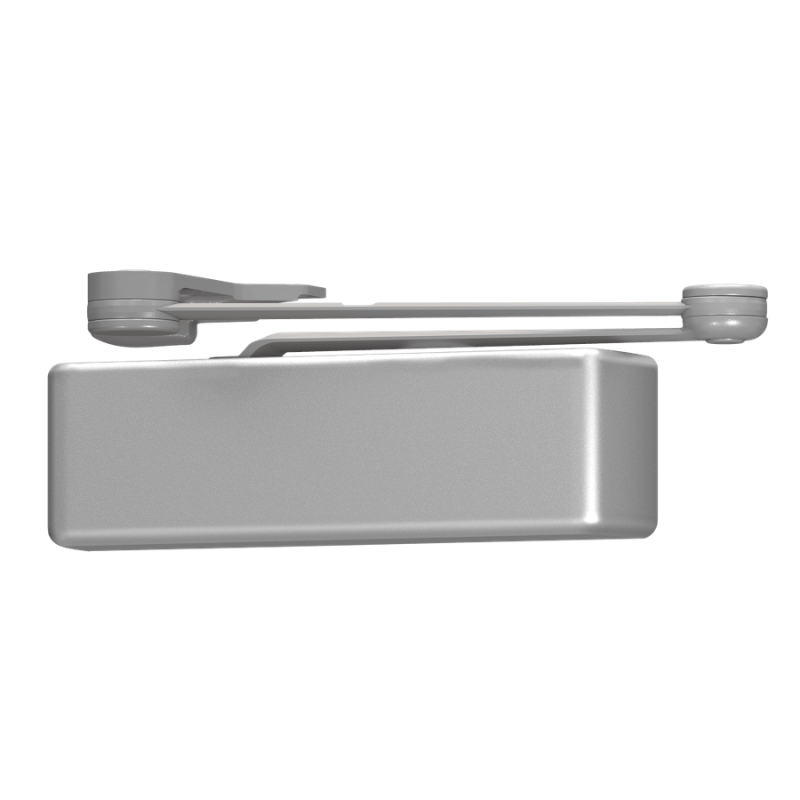

LCN 4040XP-SCUSH-689-MC TBSRT Surface Door Closer, Spring Cush-N-Stop Arm, Features Forged, Solid Steel Main and Forearm, with Spring Loaded Stop, Metal Cover, Grade 1, Aluminum Painted Finish

The LCN 4040XP-SCUSH-689-MC TBSRT Surface Door Closer is a heavy-duty Grade 1 closer built for demanding commercial openings. This surface door closer is supplied with a Spring Cush-N-Stop arm that features a forged, solid steel main and forearm with spring loaded stop control to help manage door opening. The closer also includes a metal cover for added protection and a clean finished appearance. As part of the 4040XP series, it is designed for high-traffic applications where reliability and long service life matter. This model is specified in an aluminum painted finish and is engineered to deliver durable, consistent closing performance.

Features

• Surface-mounted door closer designed from the LCN 4040XP series for heavy-duty commercial use.
• Includes a Spring Cush-N-Stop arm for controlled opening and stop assistance.
• Arm features forged, solid steel main and forearm construction for long-term durability.
• Spring loaded stop helps absorb opening force and reduce stress on the door and frame.
• Supplied with a metal cover for a more protected and finished installation.
• Meets Grade 1 requirements for high-performance door control applications.
• Specified in aluminum painted finish.

Functional Details

The Spring Cush-N-Stop arm combines a cushioned stop function with spring-loaded control to help absorb the force of an opening door before it reaches the limit of travel. This type of arm is commonly used where some door stopping capability is needed, while still recognizing that auxiliary wall or floor stops are recommended where severe abuse or high wind conditions may occur.

• Non-handed
• Forged, solid steel main arm and forearm
• Stop in soffit shoe
• Spring loaded stop

Arm Type Details

The Spring Cush-N-Stop arm is a specialty arm configuration used on surface-mounted closers to provide a degree of door stop control during opening. Its forged, solid steel main arm and forearm offer added strength, while the spring-loaded stop in the soffit shoe helps cushion the opening swing. This arm type is suited for applications that need stronger arm construction and controlled stopping behavior as part of the closer assembly.

Included Components

This configuration includes the LCN 4040XP series surface door closer body, Spring Cush-N-Stop arm assembly, and metal cover.
