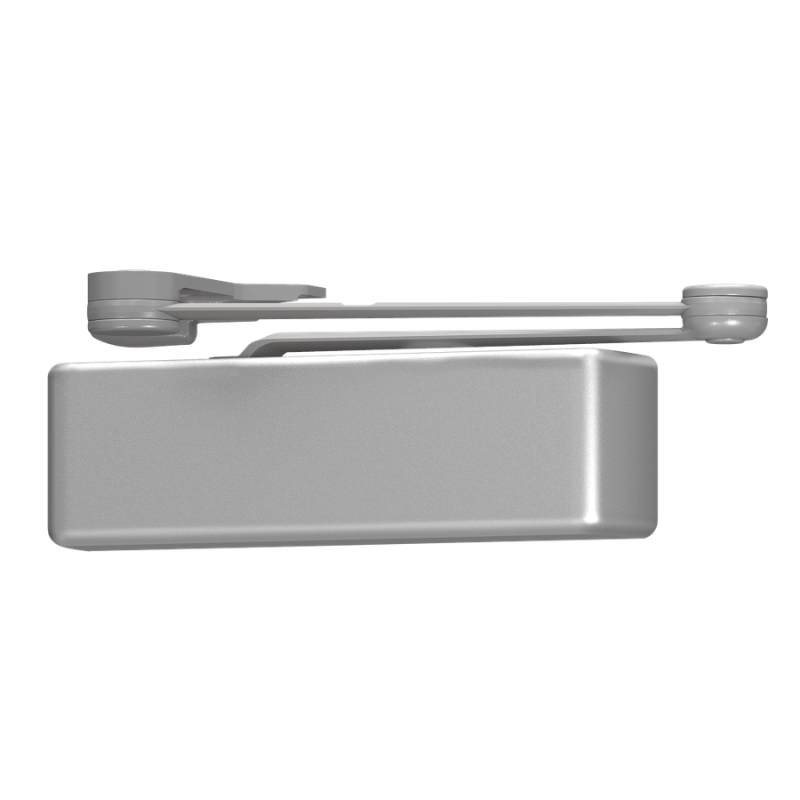

LCN 4040XP-SCUSH-TBSRT Surface Door Closer, Spring Cush-N-Stop Arm, Features Forged, Solid Steel Main and Forearm, with Spring Loaded Stop, Grade 1, Non Handed, Though Bolt Self Reaming and Tapping Screws

The LCN 4040XP-SCUSH-TBSRT Surface Door Closer is a heavy-duty Grade 1 closer built for demanding commercial openings that require reliable control and long service life. This non handed closer is designed with a Spring Cush-N-Stop arm and features a forged, solid steel main and forearm with a spring loaded stop to help manage door movement at the end of the swing. Supplied with though bolt self reaming and tapping screws, the LCN 4040XP-SCUSH-TBSRT is part of the trusted 4040XP series and is engineered for high-traffic applications where strength, durability, and consistent closing performance matter.

Features

• Surface door closer design supports commercial door control in high-use applications.
• Spring Cush-N-Stop arm helps cushion the door opening and provides controlled stopping action.
• Forged, solid steel main and forearm construction delivers added strength and durability.
• Spring loaded stop helps reduce stress during the door opening cycle.
• Grade 1 construction meets heavy-duty performance requirements.
• Non handed configuration allows installation on either right- or left-hand doors.
• Though bolt self reaming and tapping screws are included for mounting.

Functional Details

The Spring Cush-N-Stop arm is designed to provide controlled resistance as the door approaches the stop point, helping reduce abrupt impact at the end of the opening cycle. This arm style is commonly used where a degree of stop control is needed, while still relying on the closer and arm assembly for surface-mounted operation.

• LCN Cush arms use a spring to provide a cushioning effect at a selected degree of opening.
• LCN Stop arms incorporate a selective stop in the soffit shoe.
• Hold-open points range from 85° to 120° of opening.
• Dead stop and friction hold-open points range from 85° to 120° of opening.

Arm Type Details

The Spring Cush-N-Stop arm combines a forged, solid steel main arm and forearm with a spring-loaded stop arrangement to help absorb opening force before the door reaches its limit. This configuration is suited for openings that benefit from a cushioned stop feature while maintaining the strength expected from a heavy-duty surface closer arm.

Included Components

This LCN 4040XP-SCUSH-TBSRT closer includes the surface-mounted closer body, Spring Cush-N-Stop arm, forged solid steel main and forearm, spring loaded stop, and though bolt self reaming and tapping screws for installation.
