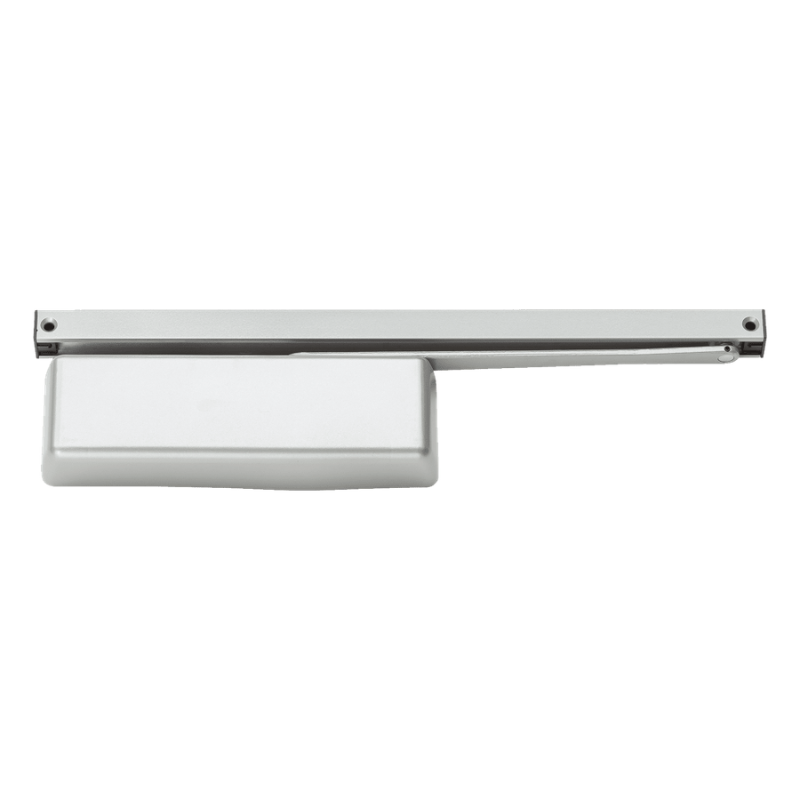

LCN 4040XPT-H BUMPER-689-TBSRT Hold Open Track Arm Surface Closer, Bumper, Push or Pull Side Mounting, 110 Degree Swing, Adjustable Size 1 to 4, Grade 1, Non-Handed, Aluminum Painted Finish

The LCN 4040XPT-H BUMPER-689-TBSRT Hold Open Track Arm Surface Closer is a heavy-duty surface closer designed for bumper applications where controlled door closing and hold open convenience are needed. This non-handed closer supports push or pull side mounting and provides a 110 degree swing with an adjustable spring size from 1 to 4 for flexible door control. Built to Grade 1 standards, the LCN 4040XPT-H BUMPER-689-TBSRT uses a hold open track arm configuration and comes in an aluminum painted finish. It is part of the LCN 4040XP Series, known for durable performance in demanding commercial openings.

Features

• LCN 4040XPT-H BUMPER-689-TBSRT is a surface closer designed with a hold open track arm for bumper applications.
• The closer is non-handed for easier specification and installation.
• It supports push or pull side mounting to suit different opening conditions.
• The track arm configuration provides a 110 degree swing range.
• Adjustable spring power from size 1 to 4 allows the closer to be tailored to the opening.
• This closer is built to Grade 1 standards for heavy-duty commercial use.
• The unit is supplied in an aluminum painted finish.

Functional Details

The hold open track arm function allows the door to remain open at a selected point in its swing, which can be useful in high-traffic areas or where temporary hold open is needed. In this bumper configuration, the closer is arranged for applications that require controlled movement with track arm mounting on either the push or pull side.

• Single lever (track) arm
• Non-handed
• Mounts hinge side, top jamb and parallel arm
• Adjustable spring sizes 1-4
• Forged steel main arm
• Solid forged steel forearm
• All weather fluid
• Peel-n-stick template and instructions

Arm Type Details

This hold open track arm uses a single lever track-style arm that offers a lower profile than a traditional double lever arm. The track design helps manage door movement in applications where a compact arm arrangement is preferred, while the hold open feature allows the door to stay open at a selected position up to the listed swing limit.

Included Components

The closer is supplied with a hold open track arm assembly, forged steel main arm, solid forged steel forearm, and peel-n-stick template and instructions for installation.
