Description

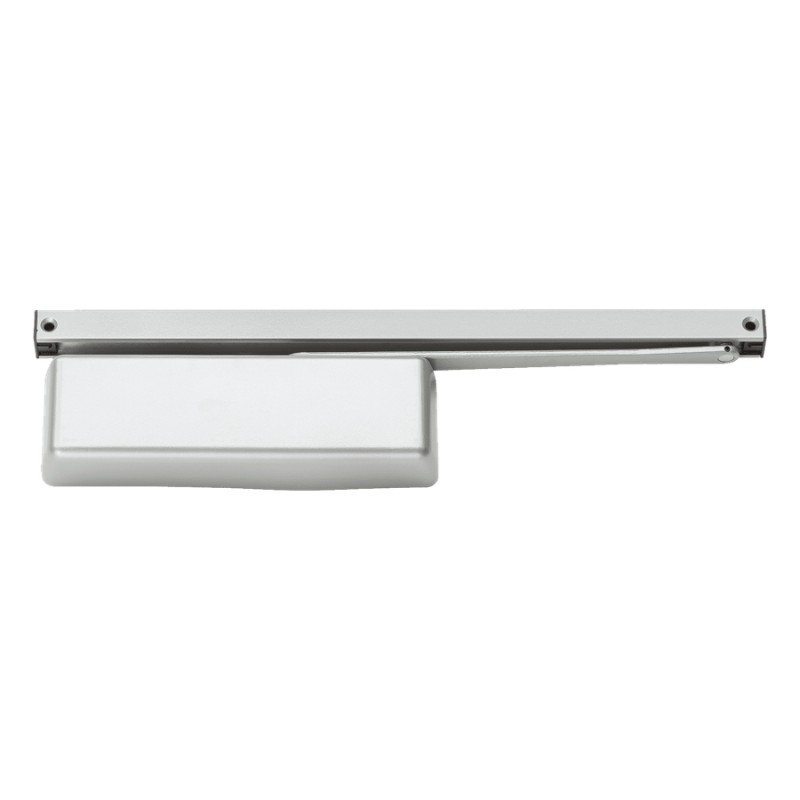

LCN 4040XPT-STD-689-TBSRT Track Arm Surface Closer, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1 to 4, Grade 1, Non-Handed, Aluminum Painted Finish
The LCN 4040XPT-STD-689-TBSRT Track Arm Surface Closer is a heavy-duty overhead closer designed for push or pull side mounting where controlled door closing and a clean, low-profile arm configuration are needed. This non-handed surface closer features a track arm design, supports up to 120 degree swing, and offers adjustable spring power from size 1 to 4 for flexible installation. Built to Grade 1 standards, the 4040XPT-STD closer is suited for demanding commercial openings. The package includes the TBSRT track arm configuration, and the 689 aluminum painted finish provides a durable, professional appearance for a wide range of applications.
Features
- LCN 4040XPT-STD-689-TBSRT is a surface-mounted track arm closer for commercial door applications.
- Designed for push or pull side mounting to support multiple installation conditions.
- The track arm configuration provides controlled closing with a streamlined arm profile.
- Allows up to 120 degree swing as specified for this arm and mounting combination.
- Adjustable spring power from size 1 to 4 helps match door control to opening requirements.
- Grade 1 construction is built for high-use institutional and commercial environments.
- Non-handed design simplifies ordering and field installation.
- Supplied in 689 aluminum painted finish for a durable coated appearance.
- Includes the TBSRT track arm assembly as part of the closer package.
Arm Type Details
This track arm configuration is designed for applications where a lower-profile arm setup is preferred over a traditional projecting arm. On the LCN 4040XPT-STD, the track arm helps manage door movement through the slide track assembly while supporting push or pull side mounting and the specified 120 degree swing range.
Included Components
This closer package includes the LCN 4040XPT-STD surface closer body and the TBSRT track arm assembly in 689 aluminum painted finish.
Product Specifications
| Manufacturer | LCN |
|---|---|
| Series | 4000 Series |
| Model | 4040XPT-STD |
| SKU | 4040XPT-STD |
| Product Type | Track Arm Surface Closer |
| Mounting | Push or Pull Side Mounting |
| Handing | Non-Handed |
| Grade | Grade 1 |
| ANSI Number | A156.4 |
| UL Listing Type | UL and cUL listed |
| Unit of Measure | Each |
| Arm Type | TBSRT Track Arm |
| Finish Description | 689 Aluminum Painted Finish |
| Closer Size | Adjustable Size 1 to 4 |
| Limited Warranty | 30 years |
Technical Specifications
| Door Control Series | 4000 Series |
|---|---|
| Closer Body | 4040XPT |
| Arm Configuration | STD TBSRT |
| Spring Size Range | 1-4 |
| Maximum Swing | 120 degrees |
| Mounting Type | Push side, pull side |
| Handing | Non-handed |
| ANSI Standard | A156.4 |
| Grade Classification | Grade 1 |
| UL Listed | Yes |
| cUL Listed | Yes |
| Closer Type | Surface mounted |
| Arm Type | Track arm |
| Hold Open | No |
