Description

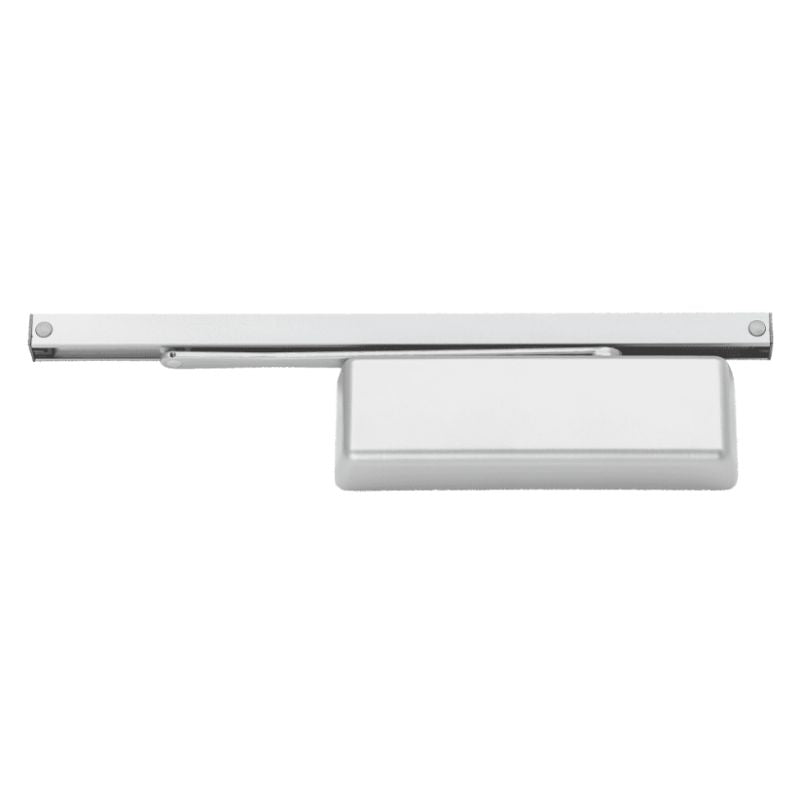

LCN 4111-EDA-689 Surface Door Closer, Extra Duty Arm, Push Side Parallel Arm Mounting, 180 Deg. Swing, Size 1 to 5, Full Plastic Cover, Grade 1, Aluminum Painted Finish
LCN 4111T-STD-689 Surface Door Closer features an Extra Duty Arm and Push Side Parallel Arm Mounting for 180 degree swing. This Grade 1 closer comes in a Size 1 to 5 and is finished with Aluminum Paint for added durability. The Full Plastic Cover provides additional protection and makes it suitable for a variety of applications.
4110T Series Surface Mounted Closers
LCN’s best performing heavy duty track closer.
Best used for interior doors in institutional and other high traffic applications.
- Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
- Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal
- Fluid: All Weather Fluid
- Handing: Handed
- Size: Adjustable Spring Size 1-5, or Sized 6. Includes Patented Green Dial
- Warranty 30 years
Product Specs
Manufacturer | LCN |
SKU | 4111T-STD 689 |
Grade | Grade 1 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
BAA Qualified | Yes |
Limited Warranty | 30 Years |
Finish | |
Finish | 689/US28 |
Finish Description | Aluminum Painted |
Finish Family | Matte Silver |
Technical Specs
Type | Surface |
Technology | Hydraulic |
Mounting Location | Push Side |
Mounting Style | Slide Track |
Hold Open | No |
Hand | LH or RH |
Degree Swing | 110 Deg. |
Cover | Full Plastic |
Cold Weather Fluid | Yes |
Product Type | Surface Closers |
