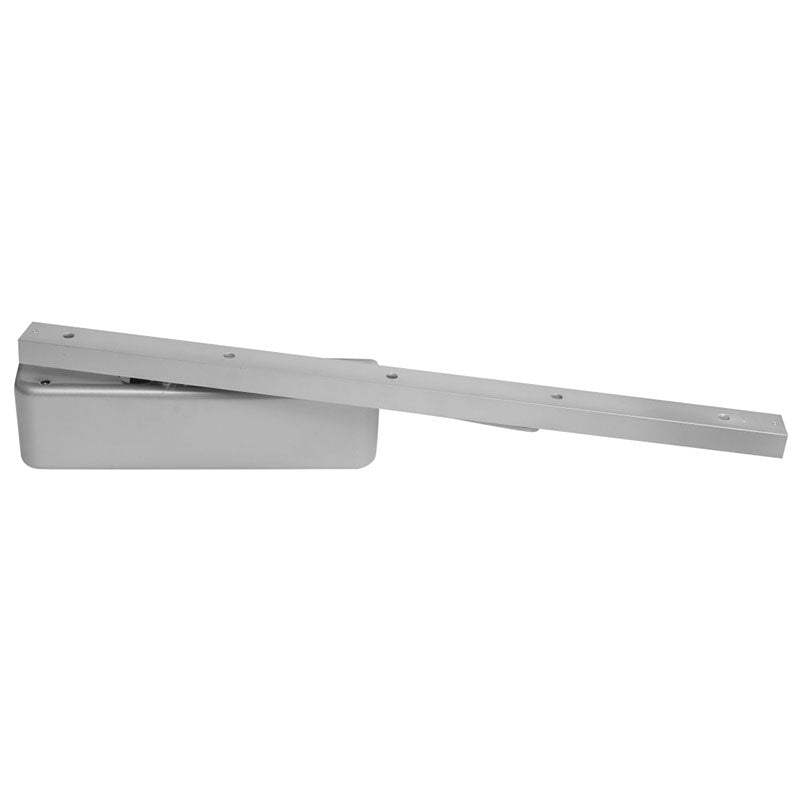

The LCN 4514T-STD High-Security Track Arm Door Closer is Hinge Pull Side Mounted,  Size 4, for use with Door Widths 38"-48", Grade 1

4510T Series High-Security Closers

• Standard 4510T series closer shipped with standard arm, and security track. (non-hold-open), track roller, metal security cover, and TORX Machine Screw pack. See 4510T Series page 21 for options.
• Sized cylinders for interior doors to 4’0”.
• Closer mounts hinge side, specify right or left swinging door.
• 4511T cylinder meets ADA requirements. See 4510T Series page 22.
• Standard or optional custom powder coat finish.
• Optional SRI primer for installations in corrosive conditions.
• The 4510T Series is UL listed for self-closing doors.
• Tested and certified under ANSI Standard A156.4, grade one.

OMH Approved

Applications

• For any concealed or surface-mounted installation subject to potential abuse or vandalism
• For correctional, aluminum, hollow metal, or wood doors and frames
• Can be used with a hinge or pivot-mounted door
• Adapter plates and other installation accessories available for non-standard conditions

Positive Pressure

• LCN closers have been certified for three hours by UL to be in compliance with UL 10 C. Contact LCN for specific details on door closer fire ratings.
