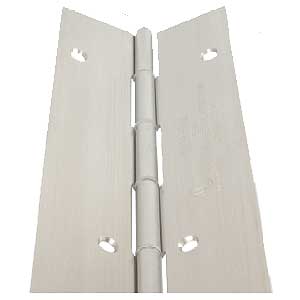

Markar FM300-95 is a Heavy Duty 95" 630/US32D Satin Stainless Steel Edge Mounted Continuous Hinge 95" Length
The Markar 300 Series Continuous Hinges are manufactured from heavy-duty 14 gauge 304 stainless steel and support weights up to 600 lbs.
Markar FM300-95 Features
-
Supports weights up to 600lbs.
-
4'0" maximum door width
-
Symmetrically templated
-
Heavy-duty 14 gauge stainless steel
-
US32D Satin Stainless Steel (630)
-
Edge Mount
-
.187" diameter stainless steel pin (rod)
-
Flanged nylon bearings
Markar FM300-95 Specifications
|
Finish:
|
Satin Stainless Steel
|
|
Length:
|
95"
|
|
Width:
|
2-1/4"
|
|
Leaf Thickness:
|
0.083"
|
|
Manufacturer:
|
Markar
|
Markar FM300-95 Certifications
|
BHMA:
|
ANSI/BHMA Standard A156.26 Grade 1
|
|
UL:
|
Classified in accordance with UBC standard 7-2 for positive pressure
20 minutes wood doors
90 minutes hollow metal and composite core wood fire doors
3 hours hollow metal doors mounted singly
|
