Markar FM300-95-RB Edge Mounted 630/US32D Stainless Steel Raised Barrel Continuous Hinge - 95" Length

  • SKU: FM30095RB
  • ✓
    Available (4‑6 Weeks)
    4-6 Weeks Lead Time
Your Price
$551.01/ea

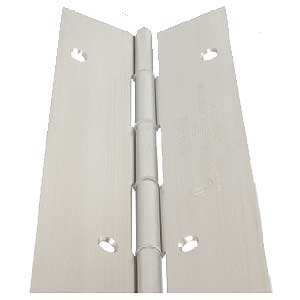

Markar FM300-95-RB is a Heavy Duty 95" 630/US32D Satin Stainless Steel Edge Mounted Raised Barrel Continuous Hinge 95" Length

The Markar 300 Series Continuous Hinges are manufactured from heavy-duty 14 gauge 304 stainless steel and support weights up to 600 lbs.

Markar FM300-95-RB Features

  • Supports weights up to 600lbs.
  • Raised Barrel
  • 4'0" maximum door width
  • Symmetrically templated
  • Heavy-duty 14 gauge stainless steel
  • US32D Satin Stainless Steel (630)
  • Edge Mount
  • .187" diameter stainless steel pin (rod)
  • Flanged nylon bearings

Markar FM300-95-RB Specifications

Finish: Satin Stainless Steel
Length: 95"
Width: 2-1/4"
Leaf Thickness: 0.083"
Manufacturer: Markar

Markar FM300-95-RB Certifications

BHMA: ANSI/BHMA Standard A156.26 Grade 1
UL: Classified in accordance with UBC standard 7-2 for positive pressure
20 minutes wood doors
90 minutes hollow metal and composite core wood fire doors
3 hours hollow metal doors mounted singly
Product Cut Sheet
