Description

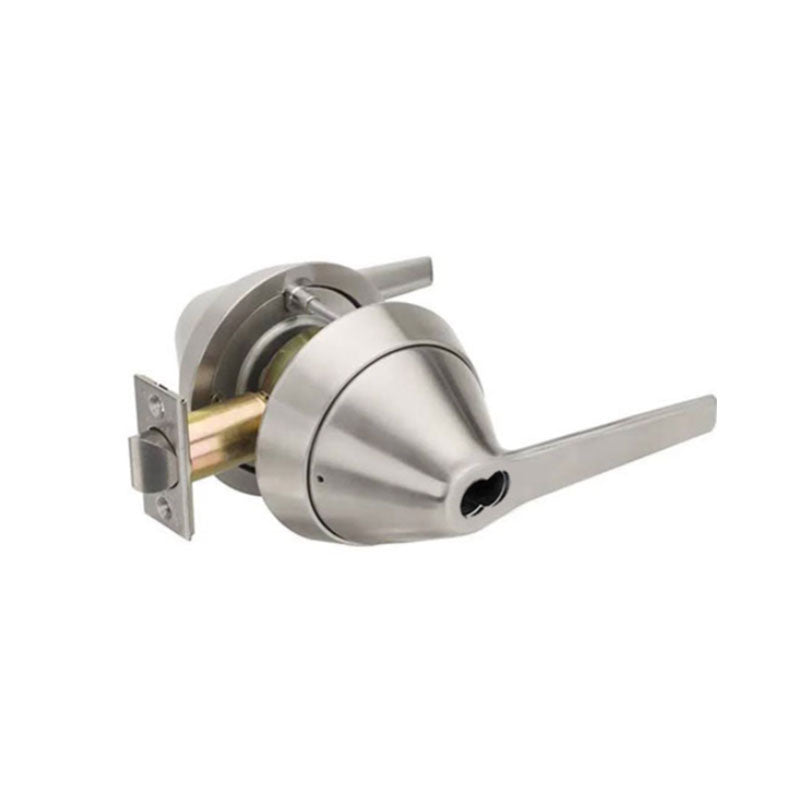

The Marks USA 195SRDW/US32D is an Anti-Ligature Lever Lockset that is Institution function lock, is SFIC Prepped Less Core, has a 2 3/4 Backset, has an ASA Strike, and comes in US32D Satin Stainless Steel Finish.
- ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating
- Backset: 2 3/4” Standard, 2 3/8”, 3 3/4”, 5” Available
- Latch #1834, stainless steel nose
- Levers: Solid cast stainless steel. Levers Rotate up & down freely in locked or unlocked position
- Levers recessed into solid stainless steel roses eliminating any open gap
- Roses: Thru-bolted, spring loaded, #10 thru-bolts
- Strike: #1135, 4 7/8” ASA curved lip strike
- Door thickness: 1 3/4” +/- 1/16”
- Stainless steel retractor
Product Specs
| Manufacturer | Marks |
| SKU | 195SSRDW/US32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Function | DW-Institution |
| ANSI Function |
F87 |
| Lever/Knob Design | 195SS-Anti-Ligature Lever |
| Lever/Knob Design Family | Anti-Ligature Lever |
| Rose/Escutcheon Design |
3 13/16" Diameter |
| Cylinder Type |
SFIC Prep Less Core |
| Handing | Non-Handed |
| Door Thickness | 1 5/8" to 1 7/8" |
| Std. Latch Number | 1834A |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2 3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 2 1/4" x 1 1/8" |
| Bolt Projection | 9/16" |
| Bore Hole Diameter | 2 1/8" |
| Std. Strike Number | 1135 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4 7/8" |
| Std. Strike Width | 1 1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
