Marks USA 195SSAQ/32D Anti-Ligature Lever Exit Lockset, Schlage "C" Keyway, Keyed Random, [2] Keys, US32D Satin Stainless Steel

  • SKU: 195SSAQ32D

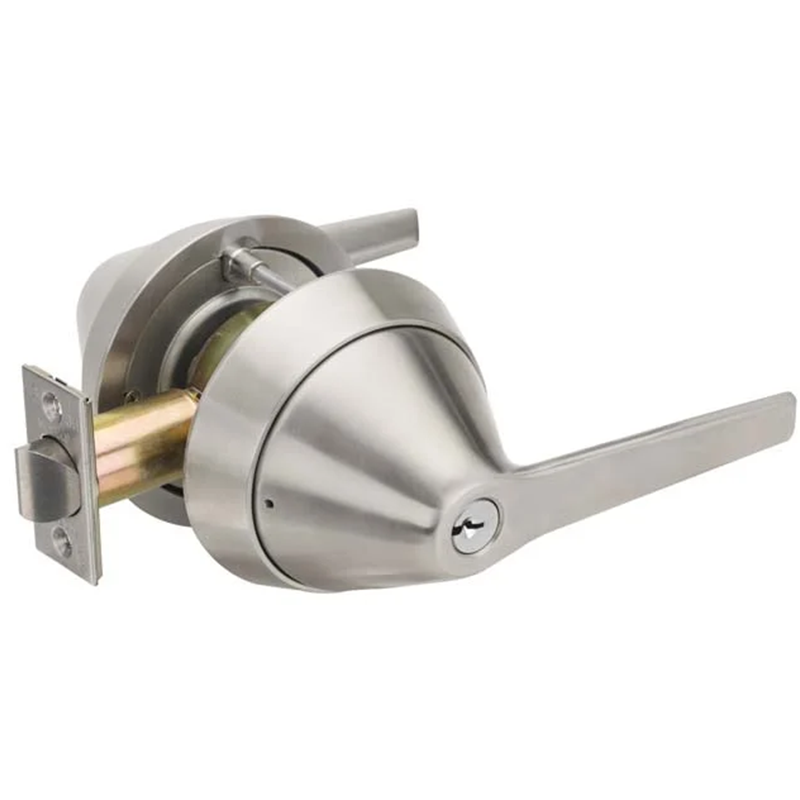

Marks USA Life Saver 195SSAQ Anti-Ligature Lever Exit Cylindrical Lockset Satin Stainless Steel
Marks USA Life Saver 195SSAQ Anti-Ligature Lever Exit Cylindrical Lockset Satin Stainless Steel
All MARKS USA Products

Marks USA 195SSAQ/32D Anti-Ligature Lever Exit Lockset, Schlage "C" Keyway, Keyed Random, [2] Keys, US32D Satin Stainless Steel

  • SKU: 195SSAQ32D
$379.83/ea
In Stock
In Stock

Marks USA 195SSAQ/32D Anti-Ligature Lever Exit Lockset, Schlage "C" Keyway, Keyed Random, [2] Keys, 2-3/4" Backset, ASA Strike, US32D Satin Stainless Steel

The Marks USA 195SSAQ is a Ligature Resistant Cylindrical Lever Lockset with a 2 1/8" bore, and 2 3/4" backset. AQ is an Exit Function. The finish is a US32D/630 Stainless Steel Finish. The locks come with a Schlage C fixed core keyed randomly.

Function
AQ EXIT
ANSI Function
F83
Lever/Knob Design 195 SS
Lever/Knob Design Family Anti-Ligature Lever
Rose/Escutcheon Design
3-13/16" Diameter
Cylinder Type
Key in Lever Cylinder
Num Pins 6
Std. Keyway Schl C
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Handing Non-Handed
Door Thickness 1-5/8" to 1-7/8"
Std. Latch Number 1834A
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 2-1/4" x 1-1/8"
Bolt Projection 9/16"
Bore Hole Diameter 2-1/8"
Std. Strike Number 1135
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock



Vendor Napco Security Technologies
Manufacturer Marks
SKU 195SSAQ/32D
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 10C
ANSI Number A156.2
Restrictions None
BAA Qualified Yes
Limited Warranty Lifetime
Fire Rated 3 Hours
Burglar Rated No
ADA Compliance No
Finish 630/US32D
Finish Description Satin Stainless Steel
Finish Family Matte Silver
