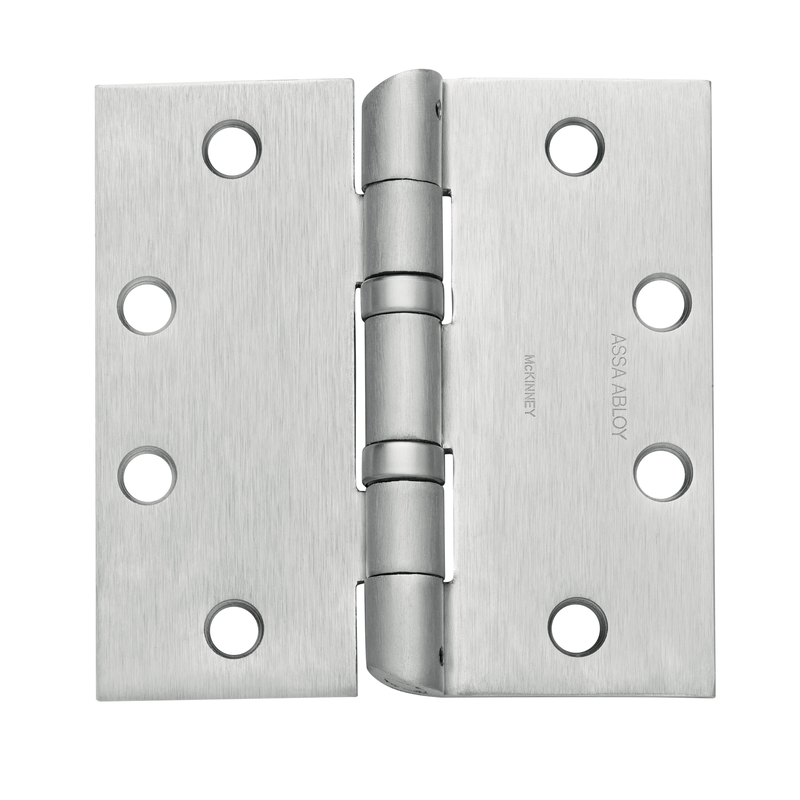

McKinney HTA2314-4-1/2x4-US32D Full Mortise Standard Weight Bearing Hinge, Five Knuckle, Hospital Tip, 4-1/2" x 4", Square Corner, 630 Satin Stainless Steel Finish

The McKinney HTA2314 is a full mortise, standard weight ball bearing hinge built for reliable performance on medium-frequency commercial openings. Measuring 4-1/2" x 4" with a square corner design, this five knuckle hinge features a hospital tip that eliminates the flat top surface where dirt and contaminants can collect, making it a smart choice for healthcare facilities, clean rooms, and sanitary environments. Finished in 630 satin stainless steel, it offers strong corrosion resistance and a clean, professional appearance. The two ball bearings provide smooth door swing and long service life, supporting consistent operation door after door.

Features

• Full mortise mounting for concealed installation on standard commercial doors and frames.
• Five knuckle construction with two ball bearings for smooth, durable operation.
• Hospital tip design sheds debris and helps maintain sanitary conditions.
• Standard weight rating suited for medium-frequency door applications.
• Square corner template for common commercial door prep.
• 630 satin stainless steel finish resists corrosion and wear.

Functional Details

The hospital tip replaces the traditional flat button tip with an angled surface at the top and bottom of the barrel. This sloped design prevents accumulation of dust, fluids, and other contaminants, and discourages the concealment of items on the hinge, which is why it is frequently specified for hospitals, psychiatric facilities, and correctional settings.
