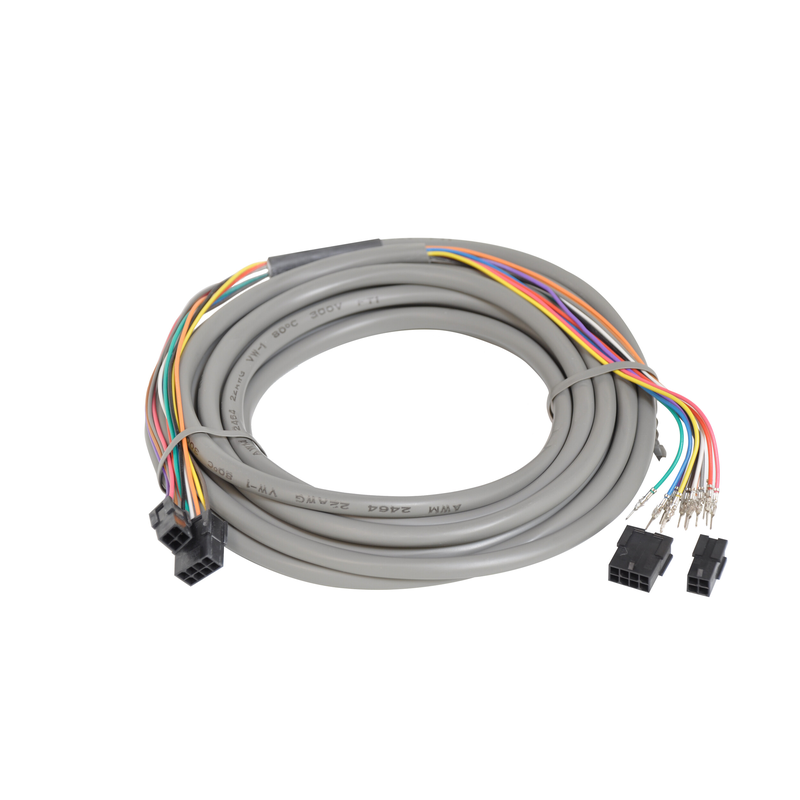

McKinney QC-C012P ElectroLynx Retrofit Cable, 12", 12-Wire, Molex One End, Pinned One End

The McKinney QC-C012P ElectroLynx Retrofit Cable simplifies electrified door hardware installations by providing a plug-and-play connection for through-wire hinges and electric locking devices. Measuring 12 inches with a 12-wire configuration, this cable features a Molex quick-connector on one end and a pinned termination on the opposite end, making it ideal for retrofit applications where existing wiring needs to interface with ElectroLynx components. The pinned end allows technicians to build custom connections in the field, reducing labor time and eliminating the need for hardwiring. Built to McKinney's ElectroLynx standards, it ensures reliable power and signal transfer for access control, monitoring, and locking systems in commercial door openings.

Features

• 12-inch length designed for retrofit ElectroLynx applications.
• 12-wire configuration supports multiple electrified hardware functions.
• Molex quick-connector on one end for fast, tool-free plug-in installation.
• Pinned termination on the opposite end for custom field connections.
• Compatible with McKinney ElectroLynx electrified hinges and door hardware.
• Reduces installation labor by eliminating hardwiring.

Functional Details

The QC-C012P serves as an intermediate connector between ElectroLynx power transfer hinges and electrified locking or monitoring devices. The Molex end plugs directly into a mating ElectroLynx connector, while the pinned end lets the installer terminate individual wires to complete the circuit at the device side.

Included Components

Each order includes one QC-C012P retrofit cable with a Molex connector on one end and a pinned connector on the opposite end.
