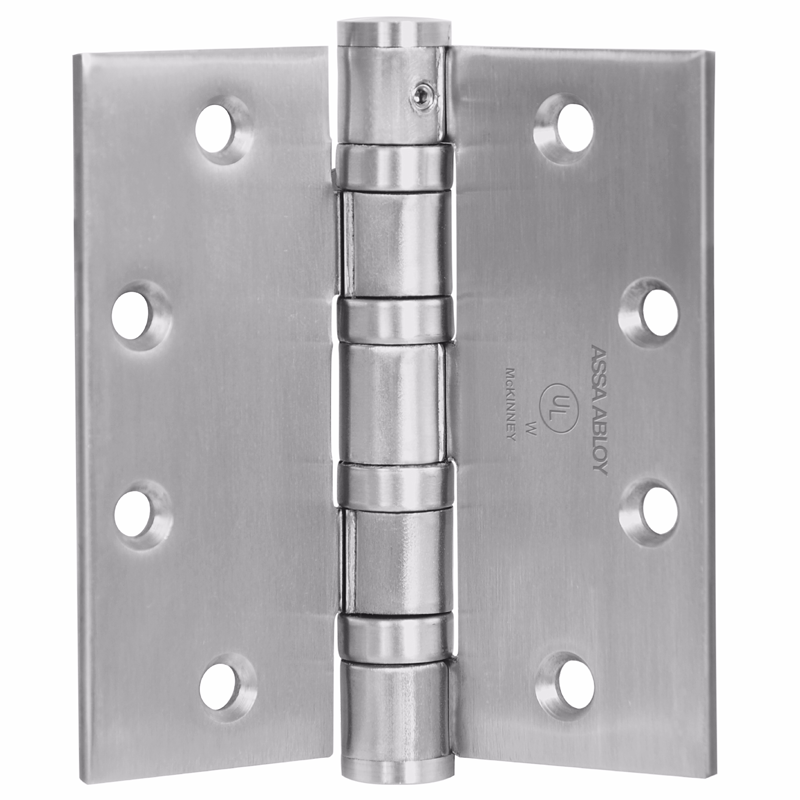

McKinney T4A3386-5 X 4 1/2-US32D-NRP Five Knuckle Hinge Full Mortise, Heavy Weight, Non-Removable Pin, Satin Stainless Steel Finish

  • SKU: T4A3386545NRPUS32D
McKinney T4A3386 5x4.5 Five Knuckle Hinge Full Mortise Heavy Weight Non-Removable Pin Stainless Steel
McKinney T4A3386 5x4.5 Five Knuckle Hinge Full Mortise Heavy Weight Non-Removable Pin Stainless Steel
All MCKINNEY Products

McKinney T4A3386-5 X 4 1/2-US32D-NRP Five Knuckle Hinge Full Mortise, Heavy Weight, Non-Removable Pin, Satin Stainless Steel Finish

  • SKU: T4A3386545NRPUS32D
$65.58/ea
In Stock
In Stock

McKinney T4A3386 5" x 4 1/2" Five Knuckle Hinge Full Mortise, Heavy Weight, Non-Removable Pin, US32D/630 Satin Stainless Steel Finish

The McKinney T4A3386-5X4.5-NRP-US32D can be used on all extra heavy doors or those exposed to high-frequency use.

Features:

  • Available with NRP (Non-Removable Pin)
  • Full Mortise
  • 5 Knuckle
  • Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals, or other public buildings where heavy traffic is experienced.
  • Steel base polished and plated or furnished in powder coat
  • Finishes available: US32D
  • The gauge of metal: .180
Material: Steel
Hinge Size: 5" x 4 1/2"
Wood Screw: 1-1/4 x 12 F.H.
Machine Screws: 1/2 x12-24 F.H
Number of Holes: 8
ANSI: A2111
Product Cut Sheet
