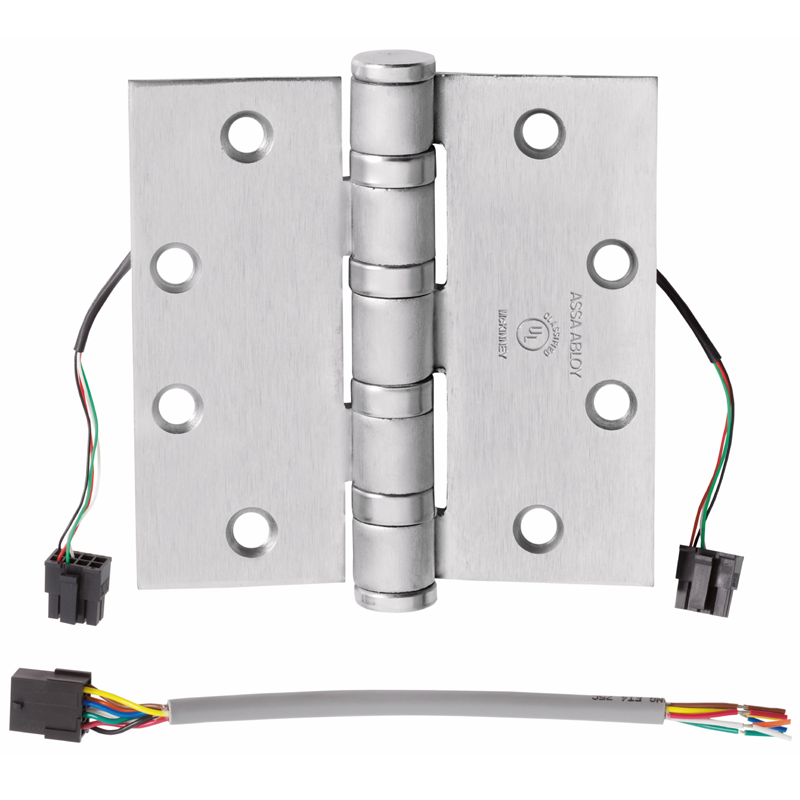

McKinney T4A3386 QC4 ElectroLynx Electric Hinge

The McKinney T4A3386-QC 4 1/2" x 4 1/2" US32D US32D/630 ElectroLynx Electric Hinge features concealed plug connectors that eliminate the need for separate or exposed wiring. Standard connectors make installation quick and simple. Brass eyelets add protection and durability.

Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals, or other public buildings where heavy traffic is experienced. McKinney electric hinges are UL listed and may be used on fire-rated doors for up to 3 hours.

An 8-position connector is used for QC4 and QC8 wire hinges.

An 8-position and a 4-position connector are used for QC12 wire hinges.

Features:

• Full Mortise
• 5 Knuckle
• Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals, or other public buildings where heavy traffic is experienced.
• Stainless Steel base
• 4 amp continuous @ 24 volts AC or DC per circuit
• 28 gauge multi-strand wires are used.
• A pigtail is provided for connection to the source wiring
• Finishes available: US26D
• The gauge of metal: .180
