McKinney T4A3786-5 X 4 1/2-NRP Full Mortise Heavy Weight Bearing Hinge, Five Knuckle, Non Removable Pin

  • SKU: T4A3786545NRPUS26D
McKinney T4A3786 5" x 4 1/2"-626
McKinney T4A3786 5" x 4 1/2"-626
McKinney T4A3786 5" x 4 1/2"-USP
Zoomed view
All MCKINNEY Products

McKinney T4A3786-5 X 4 1/2-NRP Full Mortise Heavy Weight Bearing Hinge, Five Knuckle, Non Removable Pin

  • SKU: T4A3786545NRPUS26D
  • ✓
    In Stock
    In Stock
Your Price
0% Net 30 Days: Apply Now
McKinney Finishes: US26D - Satin Chrome

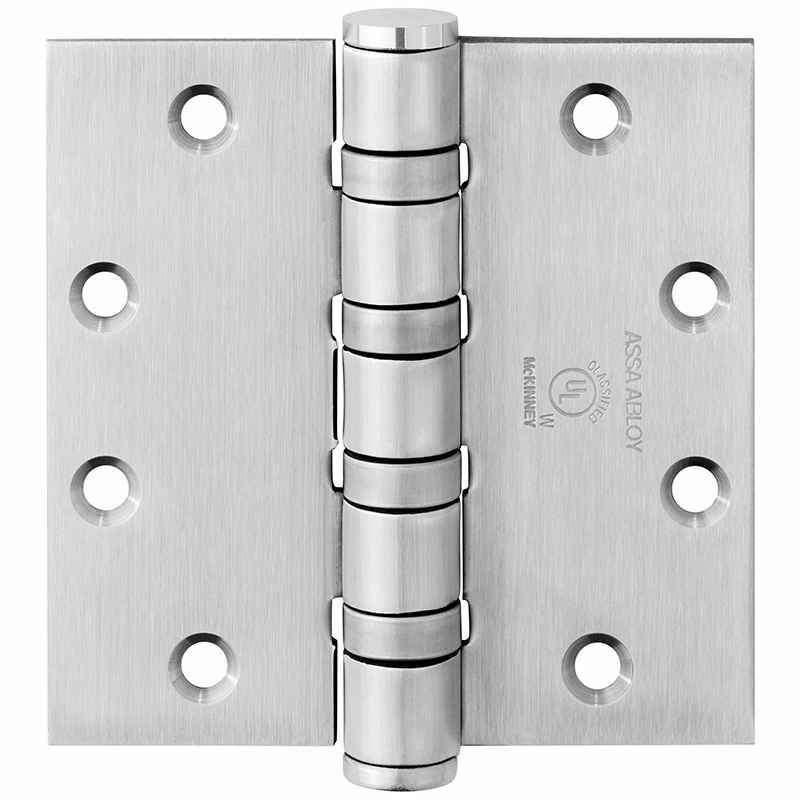

McKinney T4A3786-5 X 4 1/2-NRP Full Mortise Heavy Weight Bearing Hinge, Five Knuckle, 5" x 4 1/2", Non Removable Pin, Square Corner

The McKinney T4A3786-5 is a full mortise, heavy-duty bearing hinge measuring 5" x 4 1/2". It features a five-knuckle design with a non-removable pin and square corners, ensuring robust performance and enhanced security for demanding applications.

Features

  • NRP (Non-Removable Pin)
  • Full Mortise
  • 5 Knuckle
  • Recommended for use on extra heavy doors or those exposed to high-frequency use.
  • Steel base material
  • The gauge of metal: .190
Material: Steel
Hinge Size: 5" x 4 1/2"
Wood Screw: 1-1/4 x 12 F.H.
Machine Screws: 1/2 x12-24 F.H
Number of Holes: 8
ANSI: A8111
Product Cut Sheet
