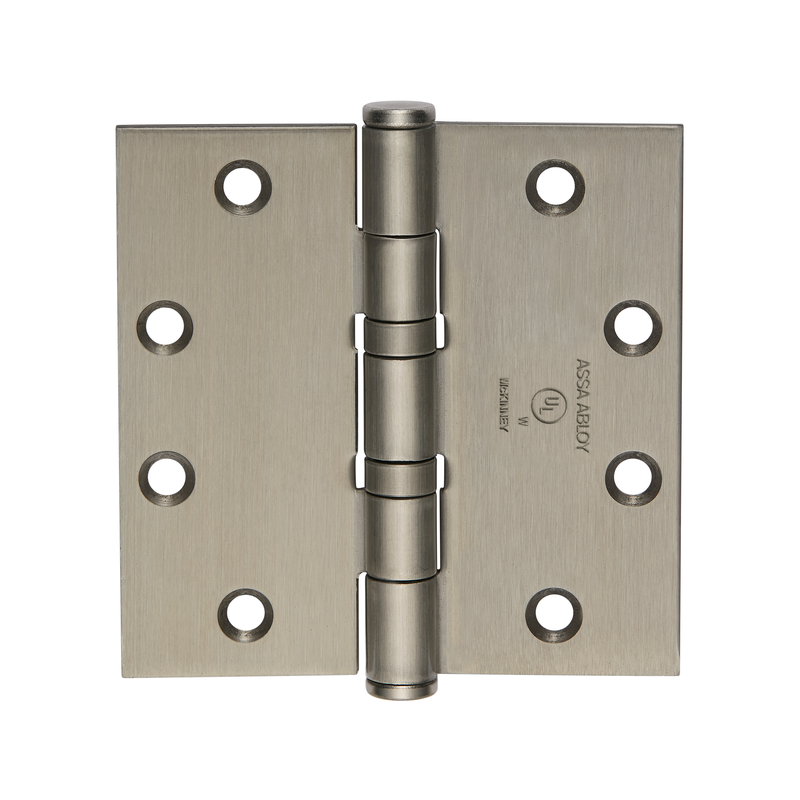

McKinney TA2314-4-1/2x4-1/2-US32D-CPC Full Mortise Standard Weight Bearing Hinge, Five Knuckle, 4-1/2" x 4-1/2", Square Corner, 630 Satin Stainless Steel Finish

The McKinney TA2314 is a full mortise, standard weight ball bearing hinge built for reliable performance on medium-frequency commercial doors. Measuring 4-1/2" x 4-1/2" with square corners, it features a five knuckle design and two ball bearings that ensure smooth, quiet operation over years of use. Finished in 630 satin stainless steel (US32D), this hinge resists corrosion and holds up well in demanding environments. Its steel construction and non-removable pin option (CPC configuration) make it a dependable choice for interior and exterior openings where durability and consistent swing are priorities. A trusted solution for architects, contractors, and facility managers alike.

Features

• Full mortise mounting for a clean, concealed installation on standard commercial doors.
• Five knuckle design provides balanced strength and a traditional appearance.
• Two ball bearings deliver smooth, low-friction operation and extended service life.
• Standard weight construction suited for medium-frequency door applications.
• 4-1/2" x 4-1/2" size with square corners fits common commercial door prep.
• 630 satin stainless steel finish offers strong corrosion resistance and lasting appearance.
