NGP 109NA Overlapping Astragal [1], 1/4" Thick Neoprene, Anodized Aluminum Finish

  • SKU: 109NA84

NGP 109NA Overlapping Astragal [1], 1/4" Thick Neoprene, Anodized Aluminum Finish

  • SKU: 109NA84
Sale price$96.16/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Length: 84"

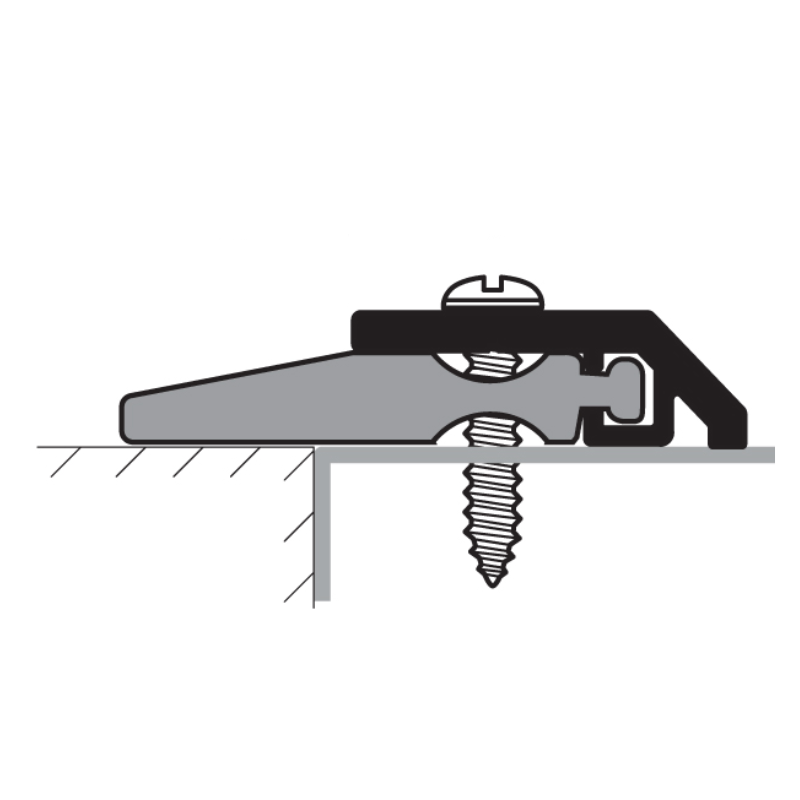

NGP 109NA Overlapping Astragal, 1/4" Thick Neoprene, [1], Includes #6 x 1"x 3/4" Stainless Steel SMS, Anodized Aluminum Finish

The NGP 109NA Overlapping Astragal is constructed with 1/4" thick neoprene and anodized aluminum finish. It also comes with #6 x 1"x 3/4" stainless steel SMS for added durability and strength.

  • Aluminum Alloy 6063, T5 Temper
  • Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
  • Very Good Abrasion Resistance, Tensile Strength and Memory
  • Flame-Resistant
  • Moisture-Resistant
  • Temperature Range -81°F to 275°F
  • Good Resistance to Ozone, Sunlight and Aging
  • BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
  • #6 x 1" & #6 x 3/4" Stainless Steel SMS Furnished
  • Screw Holes Slotted for Adjustment
  • Color is Black
  • Anodized aluminum
Manufacturer NGP
SKU 109NA
Installation Commercial
Unit of Measure Each
Product Type  Astragals
