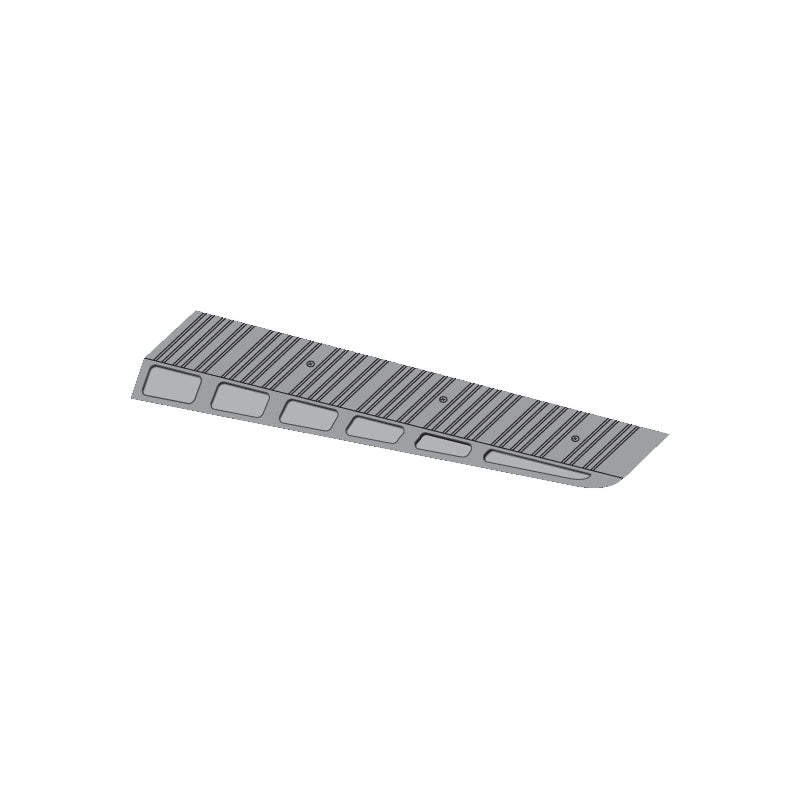

NGP RCE-21 Return Closed End Sets for Ramp Saddles, 21" Length
NGP RCE Return Closed End Sets add a polished touch to ramp thresholds. With various lengths available, they can be easily adjusted in the field to fit any ramp assembly. Sold in sets of 2.
RCE-21: 21" Mill Finish RCE-21-DKB: 21" Dark Bronze
BHMA Certified to ANSI/BHMA A156.21 1,000 Lb. Load Test
Return Closed Ends Provide an Attractive Finished Appearance to Ramps
Available in Several Lengths and Can Be Trimmed to Accommodate Any Size Ramp Assembly
Aluminum Alloy 6063, T5 Temper
ADA Compliant: Barrier-Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes
Positive Pressure: CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80, and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED: Certified thresholds comply with the American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
