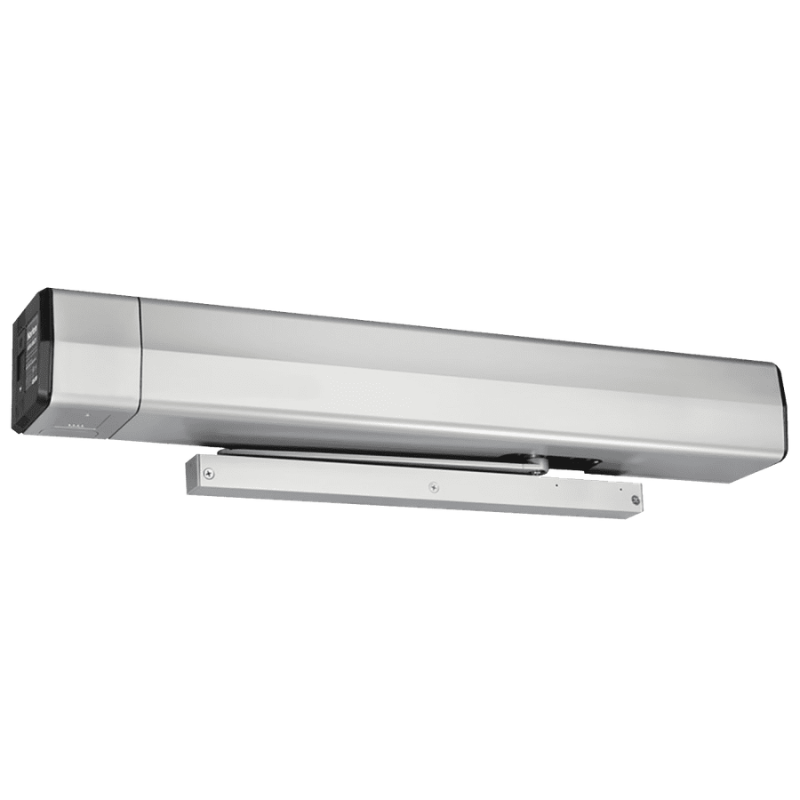

Norton 6011-689 Low Energy Surface Mounted Door Operator, Hinge Pull Side, Mounted, Rigid Arm And Slide Track Arm, Non-Handed, 110 Degree Max Opening, Aluminum Painted

The Norton 6011 Low Energy Surface Mounted Door Operator delivers reliable, ADA-compliant automatic operation for interior and exterior swing doors in commercial and institutional settings. Designed for hinge (pull) side mounting, this non-handed operator ships with both a rigid arm and slide track arm to accommodate a range of installation conditions. It supports a maximum door opening of 110 degrees and combines electro-mechanical power operation with adjustable closing control for dependable, low-energy performance. Built for high-traffic environments where accessibility and smooth cycling matter, the 6011 is a versatile choice for entrances requiring push-plate or switch activation.

Features

• Low energy surface mounted operator suitable for interior and exterior swing doors.
• Non-handed design simplifies stocking and installation on left- or right-hand doors.
• Ships with both rigid arm and slide track arm for flexible mounting options.
• Mounts on the hinge (pull) side of the door for concealed, clean installations.
• Supports a maximum door opening of up to 110 degrees.
• Electro-mechanical operation provides ADA-compliant, low-energy automatic function.
• Adjustable opening and closing speeds for controlled, safe door movement.

Functional Details

The 6011 operates as a low energy power operator, opening the door automatically upon a signal from a wall switch, push plate, or actuator, then closing under controlled spring force once the hold-open time expires. This makes it ideal for barrier-free access applications.

• Hinge (pull) side mounting with rigid arm and slide track arm.
• Non-handed for use on either hand door.
• 110 degree maximum door opening.

Arm Type Details

This operator includes both a rigid arm and a slide track arm. The rigid arm provides a strong mechanical connection for standard pull-side applications, while the slide track arm offers a lower-profile installation with the arm shoe riding in a track mounted to the door face, allowing smoother operation within the 110 degree opening range.

Included Components

Each unit comes complete with the surface mounted operator, rigid arm, and slide track arm for hinge (pull) side installation.
