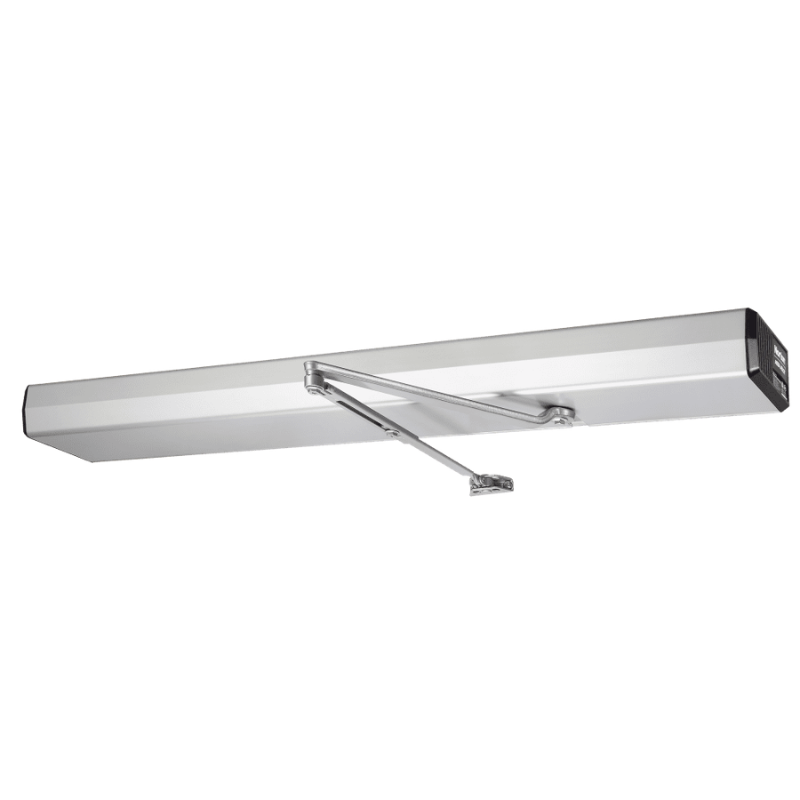

NortonRixson 6231 Low Energy Electromechanical Door Operator, Low Ceiling Push Side Surface Mounting, Regular Arm, Fire-Rated, up to 130 Degree Swing

The Norton 6231 Low Energy Electromechanical Door Operator delivers reliable, code-compliant automatic door operation in a compact, low-ceiling design. Built for push-side surface mounting with a regular arm, this fire-rated operator provides smooth, controlled opening and closing for interior and exterior doors, accommodating door swings up to 130 degrees. Engineered to meet ANSI/BHMA A156.19 low-energy requirements, it activates through knowing-act switches or actuators to improve accessibility while maintaining manual door use during power loss. The 6231 combines dependable electromechanical performance with the durable spring-power closing Norton is known for, making it a practical choice for accessible entrances in commercial and institutional buildings.

Features

• Low-energy electromechanical operation designed for accessible door applications.
• Low ceiling design ideal for installations with limited overhead clearance.
• Push-side surface mounting for straightforward installation on standard door frames.
• Regular arm configuration for controlled opening and closing.
• Fire-rated construction suitable for use on labeled fire door assemblies.
• Supports door swings up to 130 degrees.
• Adjustable spring power for closing force to match door size and conditions.
• Provides manual door operation during power interruptions.

Functional Details

As a low-energy operator, the 6231 opens the door automatically when activated by a knowing-act switch or actuator, then closes it in a slow, controlled motion that meets ANSI/BHMA A156.19 timing and force requirements. This makes it well suited for barrier-free entrances where full automatic operation is not required.

• Low energy power operator for handicapped and other applications.
• Meets ANSI/BHMA A156.19 standard for power assist and low energy power operated doors.
• Opening and closing speeds controlled independently.
• Adjustable opening and closing force.

Arm Type Details

The 6231 is configured with a regular arm for push-side mounting. In this arrangement, the operator body is mounted on the push side of the door and the arm projects outward to control the door through its swing, providing dependable opening assistance and controlled closing across the full range of motion.

Included Components

The unit ships as a complete surface-mounted low-energy operator with the regular arm assembly and standard mounting hardware for push-side installation.
