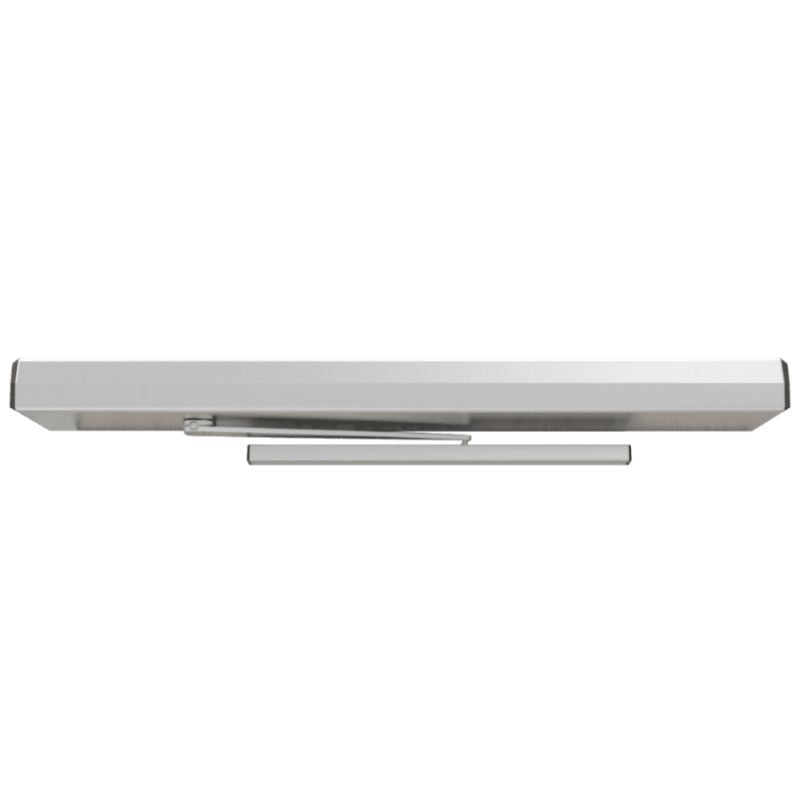

Norton 6311 Low Energy Electromechanical Door Operator, For Single 36"-48" Doors Or Pair 36" Doors

  • SKU: 6311689

Norton 6311 Low Energy Electromechanical Door Operator, For Single 36"-48" Doors Or Pair 36" Doors

  • SKU: 6311689
Sale price$3,037.65/ea
In Stock
In Stock
Finish: 689 Aluminum

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Norton 6311 Low Energy Electromechani...
Quantity
+
Sale priceFrom $3,037.65
Norton 565 Push Switch Kit, Includes ...
Quantity
+
Sale price$774.71
Total

Norton 6311 Low Energy Surface Mounted Electromechanical Door Operator, High Traffic, 37-3/8" Header, Slide Track Arm Standard, Pull Side Mounted, For Single 36"-48" Doors Or Pair 36" Doors, Max Wt 250 Lb, 180 Deg Swing

The Norton 6311 Low Energy Electromechanical Door Operator is designed for single doors between 36"-48" in width, or a pair of 36" doors. With a 37-3/8" header, slide track arm standard, and pull side mounted, this operator can handle high traffic with a maximum weight of 250 lbs and 180 degree swing.

The 6000 Series combines intelligence, reliability and superior control in one package.

Designed for moderate to high-traffic applications, this operator has a two-piece sub-assembly for easy installation and an LCD screen for clear and accurate read-out of operating settings. Available for push or pull side mounting, the 6000 Series can be operated manually or activated via wall switches or radio frequency devices. This reliable unit ensures consistent opening and closing based on dual-mode, electrohydraulic technology and is ideal for hospitals, office buildings, sports arenas or government facilities.

Functions:

  • Push and Go, selector
    • As the door is manually opened, the operator "senses" movement and opens door to the full-open position
  • Open/Close obstruction detection
    • Open: The door closes if it hits an obstruction while opening
    • Close: Door re-opens (once) if it hits an obstruction while closing – if the door hits the obstruction again, the door will rest against the obstruction until it is removed
  • Motor startup delay adjustment
    • Delays operator opening
  • Vestibule delay adjustment
  • Hold open delay adjustment
  • Single Pole Double Throw (SPDT) relay output
    • SPDT relay output time adjustment
    • SPDT alarm output
  • Blow open for smoke ventilation
  • Presence detector input
  • Selector mode switch
    • Off – Disables signal inputs except for blow open
    • On – Activates signal inputs
    • Infinite Hold Open - The door will hold open at a set position until the power is turned off

Features:

  • Push or pull side mounting
  • Non-handed
  • 1.3A onboard power supply
  • Activated by push button, handsfree and RF devices
  • Infinite hold open
  • Maximum door size 4'0" x 8'0", 250 lbs
  • Push and Go opens door to a full-open position upon manual activation
  • Obstruction Detection on both open and close cycle
  • Operates as a mechanical surface closer when power is off
  • Onboard electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
  • 2-year limited warranty
  • It can be used on a pair of 36" doors



Manufacturer Norton
SKU 6311
Installation Commercial
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty 2 Years
ADA Compliance Yes
Type Surface
Technology Low Energy Door Operator
Mounting Location Pull Side
Mounting Style Slide Track
Hold Open Type Electric
Degree Hold Open Adjustable
Arm Type Slide Track Arm, Standard
Hand Non-Handed
Degree Swing Up to 180 Deg.
Back Check Adjustable
Delay Yes
Cover Full
Door Size 36" to 48"
Voltage 24V
Product Type Door Operator
