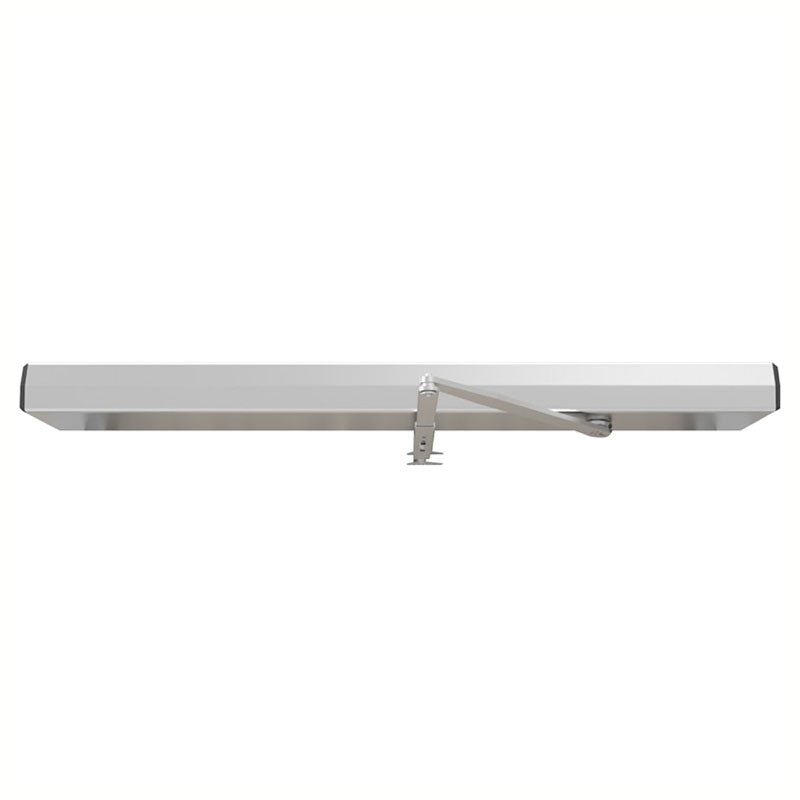

Norton 6331 Low Energy Door Operator, Surface Mounted, High Traffic, 37-3/8" Header, Double Lever Arm Regular, Push Side Mounted, 36"-48" Dr Width Max Wt 250 Lb, 135 Deg Swing
The Norton 6331 Push Side Low Energy Door Operator is designed for high traffic areas, with a 37-3/8" header and double lever arm regular for efficient operation. It is surface mounted and can accommodate a door width of 36"-48" with a maximum weight of 250 lbs. The swing can reach up to 135 degrees.
The 6000 Series combines intelligence, reliability and superior control in one package.
Designed for moderate to high-traffic applications, this operator has a two-piece sub-assembly for easy installation and an LCD screen for clear and accurate read-out of operating settings. Available for push or pull side mounting, the 6000 Series can be operated manually or activated via wall switches or radio frequency devices. This reliable unit ensures consistent opening and closing based on dual-mode, electrohydraulic technology and is ideal for hospitals, office buildings, sports arenas or government facilities.
Functions:
- Push and Go, selector
- As the door is manually opened, the operator "senses" movement and opens door to the full-open position
- Open/Close obstruction detection
- Open: The door closes if it hits an obstruction while opening
- Close: Door re-opens (once) if it hits an obstruction while closing – if the door hits the obstruction again, the door will rest against the obstruction until it is removed
- Motor startup delay adjustment
- Vestibule delay adjustment
- Hold open delay adjustment
- Single Pole Double Throw (SPDT) relay output
- SPDT relay output time adjustment
- SPDT alarm output
- Blow open for smoke ventilation
- Presence detector input
- Selector mode switch
- Off – Disables signal inputs except for blow open
- On – Activates signal inputs
- Infinite Hold Open - The door will hold open at a set position until the power is turned off
Features:
- Push or pull side mounting
- Non-handed
- 1.3A onboard power supply
- Activated by push button, handsfree and RF devices
- Infinite hold open
- Maximum door size 4'0" x 8'0", 250 lbs
- Push and Go opens door to a full-open position upon manual activation
- Obstruction Detection on both open and close cycle
- Operates as a mechanical surface closer when power is off
- Onboard electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
- 2-year limited warranty
- It can be used on a pair of 36" doors
