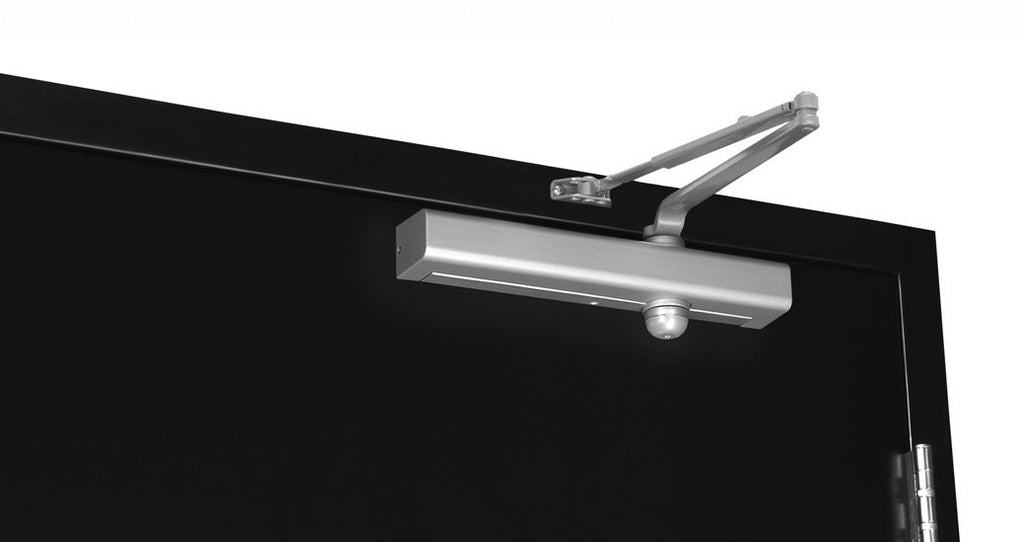

Norton 8301 Architectural Door Closer with Slim Line Cover, Surface Mounted, Regular Arm, Top Jamb, and Parallel Arm, Multi-Size 1 thru 6

  • SKU: 8301689

Norton 8301 Architectural Door Closer with Slim Line Cover, Surface Mounted, Regular Arm, Top Jamb, and Parallel Arm, Multi-Size 1 thru 6

  • SKU: 8301689
Sale price$270.49/ea
In Stock
In Stock
Finish: 689 Aluminum
Norton Closer Type: Standard

Norton 8301 Architectural Door Closer with Slim Line Cover, Surface Mounted, Regular Arm, Top Jamb, and Parallel Arm, Multi-Size 1 thru 6

The Norton 8301 Architectural Door Closer with Slim Line Cover, Tri Packed Regular Arm, Top Jamb, and Parallel Arm - Multi-Size 1 thru 6. Norton 8301 Closer Is A Grade One Surface Mounted Commercial Door Closer That Is Used In High Traffic Areas In All Types Of Institutions, Hotels, Factories, Healthcare, Ect. Norton 8301 Closer is for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell. Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with a standard cover. Norton 8301 Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents. Norton Door Controls Door Closers Are Manufactures Of Quality Made Commercial Door Hardware.




Norton 8301-689 Features

  • Tri-Style ® packaging standard (regular arm, top jamb, and parallel arm mounting)
  • Staked valves
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • All standard arm applications (with slim, full, or metal covers) allow doors to swing 180 degrees, conditions permitting
  • Shipped with slim-line plastic cover
  • Full-size template
  • Non-Hold Open

Norton 8301-689 Specifications

Dimensions: 1-1/4" (32mm) diameter piston
5/8" (16mm) diameter pinion journals
2-1/8" (54mm) projection (standard covers)
Handing: Non-Handed
Material: Cast aluminum body
Power Spring Size: Adjustable spring sizes 1 through 6
Optional Features: - Lead lined metal cover - suffix MLL
- Delayed action
- Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus ®, CloserPlus Spring Unitrol ®
- Slide Tracks: push or pull side mounting
Warranty: 10-year limited
Manufacturer: Norton

Norton 8301-689 Certifications

ANSI/BHMA: A156.4, Grade 1 certified
UL: UL10C compliant for positive pressure
ADA: ADA Compliant
