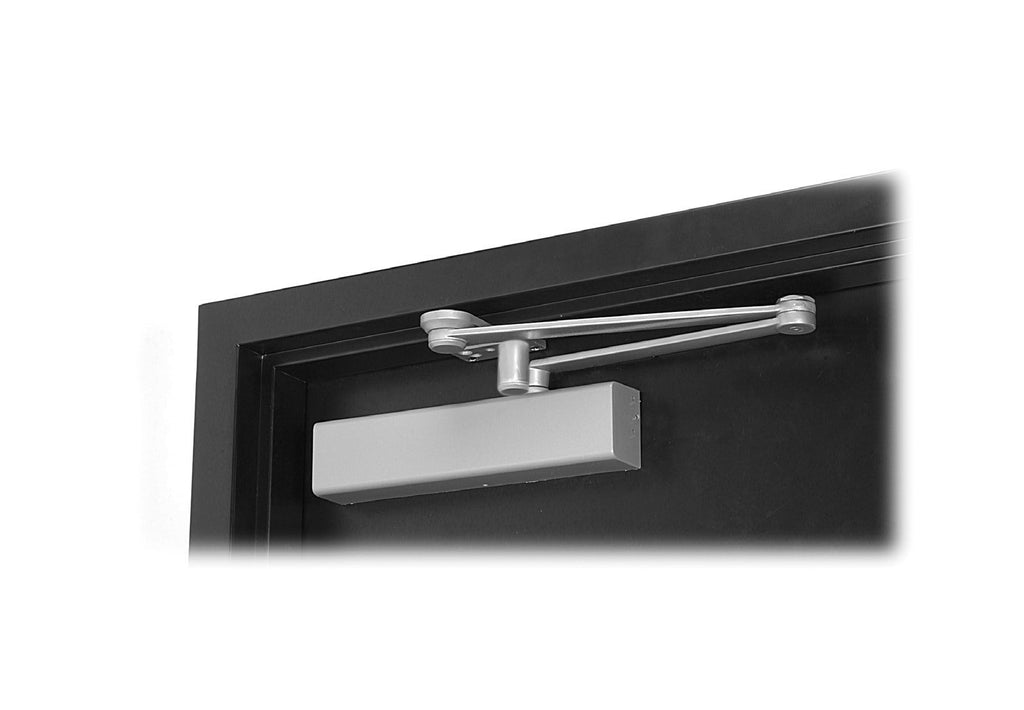

Norton CLP8501T Architectural Door Closer with Thumbturn CloserPlus Hold Open Arm - Multi-Size 1 thru 6.
The Norton CLP8501T CloserPlus Architectural Door Closer with Thumbturn CloserPlus ® Hold Open Arm - Multi-Size 1 thru 6, Norton Door Controls Door Closer CLP8501-T Is A Grade One Heavy Duty Surface Mounted Commercial Door Closer That Is Used In High Traffic Areas.
Features Norton CLP8501T "Closerplus Hold Open Arm"
- Tri-Style ® packaging standard (regular arm, top jamb, and parallel arm mounting)
- Staked valves
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- All standard arm applications (with slim, full, or metal covers) allow doors to swing 180 degrees, conditions permitting
- Shipped with full plastic cover
- Full-size template
- Hold Open
- CloserPlus ® arm
Specifications
| Dimensions: |
1-1/4" (32mm) diameter piston
5/8" (16mm) diameter pinion journals
2-1/8" (54mm) projection (standard covers) |
| Handing: |
Non-Handed |
| Material: |
Cast aluminum body |
| Power Spring Size: |
Adjustable spring sizes 1 through 6 |
| Optional Features: |
- Metal, architectural plastic, or architectural metal covers
- Lead lined metal cover - suffix MLL
- Delayed action
- Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus ®, CloserPlus Springs Unitrol ®
- Slide Tracks: push or pull side mounting |
| Warranty: |
10-year limited |
| Manufacturer: |
Norton |
Certifications
| ANSI/BHMA: |
A156.4, Grade 1 certified |
| UL: |
UL10C compliant for positive pressure |
| ADA: |
ADA Compliant |
