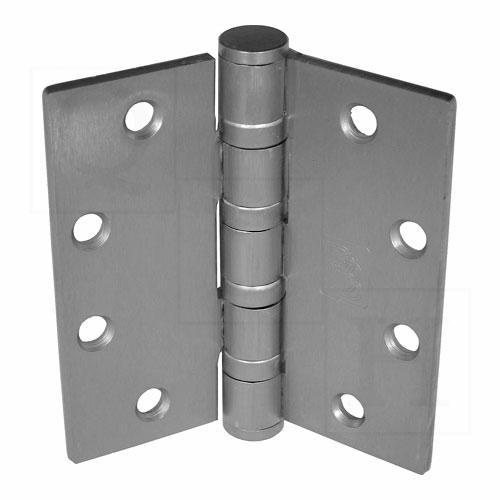

PBB 4B81 4-1/2" x 4-1/2" Ball Bearing Hinge 5-Knuckle Full Mortise Heavy Weight

Brand: PBBSKU: 4B814545US26D

Pbb Finish: -US26D, Dull Chromium (652)
Pbb Pin Option: Standard (with removable pin)
Price:
Sale price$30.52/ea
In Stock
In Stock

Related Hardware

PBB 4B81 4-1/2" x 4-1/2" Ball Bearing Hinge 5-Knuckle Full Mortise Heavy Weight


PBB 4B81 4-1/2" x 4-1/2" Ball Bearing Hinge 5-Knuckle Full Mortise Heavy Weight, The 4B81 Hinge Is For use on heavy doors or doors receiving high-frequency usage. Ball-bearing type hinges must be used on doors in conjunction with door closers and on all fire-rated openings. Features

  • For heavyweight doors receiving high-frequency service
  • Full Mortise
  • Wrought Steel
  • All hinges are ANSI template

Specifications

General Product Information: PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)
Material: Steel-Polished and Plated or Bonderized and Prime Coated for Painting
Hinge Swaging: A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16" clearance between leaves
Material Gauge: .180 ± .005
Size: Height: 4.50 (+.000/-.015)
Width: 4.50 (+.000/-.015)
Standard Screw Size: FHMS - 12-24 x 1/2"
FHWS - 12 x 1-1/4"
Packing Information: One hinge per plastic bag, 3 hinges and 1 screw pack per unit carton
16 unit carton or 48 hinges per master shipping carton
1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMS & AWS also available
Manufacturer: PBB Inc.


Certifications

ANSI: A8111
