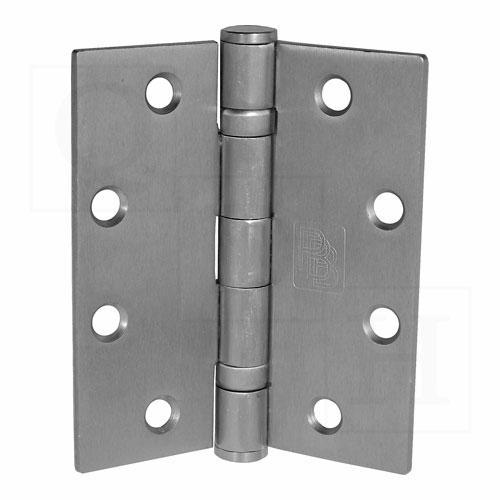

PBB BB21 4 1/2 x 4 Ball Bearing Hinge
PBB BB21 4 1/2 x 4 Ball Bearing Hinge
All PBB Products

PBB BB21 4-1/2" x 4" Ball Bearing Hinge 5-Knuckle Full Mortise Standard Weight

  • SKU: BB214540US26DNRP
$58.09/ea
In Stock
In Stock
Pbb Finish: US26D Dull Chromium (652)
Pbb Pin Option: NRP Non-Removable Pin

PBB BB21 4-1/2" x 4" Ball Bearing Hinge 5-Knuckle Full Mortise Standard Weight

PBB BB21 4-1/2" x 4" Ball Bearing Hinge 5-Knuckle Full Mortise Standard Weight. PBB BB21 Hinges Are For use on standard weight doors or doors receiving average frequency usage. Ball-bearing type hinges must be used on doors in conjunction with door closers and on all fire-rated openings

Features

  • Full Mortise
  • Wrought Brass
  • All hinges are ANSI template

Specifications

General Product Information: PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)
Material: Brass -Polished and Plated
Hinge Swaging: A standard swaging of our standard weight full mortise hinge, when closed to a parallel position, provides a 1/16" clearance between leaves
Material Gauge: .134 ± .005
Size: Height: 4.50 (+.000/-.015)
Width: 4.00 (+.000/-.015)
Standard Screw Size: FHMS - 12-24 x 1/2"
FHWS - 12 x 1-1/4"
Packing Information: One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton
16 unit carton or 48 hinges per master shipping carton
1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMS & AWS also available
Manufacturer: PBB Inc.

Certifications

ANSI: A2112
