Description

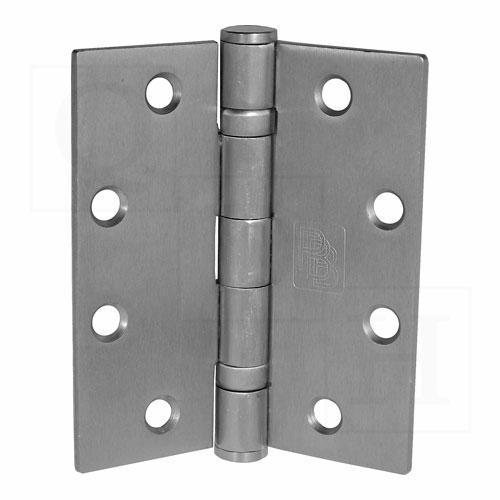

PBB BB81 4-1/2" x 4" Ball Bearing Hinge 5-Knuckle Full Mortise Standard Weight
Features
- Full Mortise
- Wrought Steel
- Standard weight
- All hinges are ANSI template
Specifications
| General Product Information: | PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
| Material: | Steel-Polished and Plated or Bonderized and Prime Coated for Painting |
| Material Gauge: | .134 ± .005 |
| Size: | Height: 4.50 (+.000/-.015) Width: 4.00 (+.000/-.015) |
| Standard Screw Size: | FHMS - 12-24 x 1/2" FHWS - 12 x 1-1/4" |
| Packing Information: | One hinge per plastic bag, 3 hinges and 1 screw pack per unit carton 16 unit carton or 48 hinges per master shipping carton 1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMS & AWS also available |
| Manufacturer: | PBB Inc. |
Certifications
| ANSI: | A8112 |
