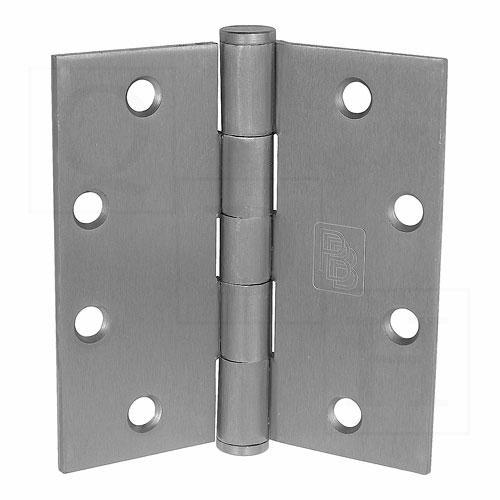

PBB PB81 4.5“ x 4.5” Plain Bearing Hinge Full Mortise 5 Knuckle Standard Weight

SKU: PB814545USP

All PBB Products

PBB PB81 4.5“ x 4.5” Plain Bearing Hinge Full Mortise 5 Knuckle Standard Weight

SKU: PB814545USP

$16.03/ea

In Stock

In Stock

Choose your options

Pbb Finish: USP Primed for Painting (600)

Pbb Pin Option: Standard (with removable pin)

Variant

Quantity:

Qty

Send2Mobile

Description
Document Center

Description

PBB PB81 4-1/2 x 4-1/2 Plain Bearing Hinge Full Mortise 5 Knuckle Standard Weight

PBB PB81 4-1/2 x 4-1/2 Plain Bearing Hinge Full Mortise 5 Knuckle Standard Weight, For use on medium weight doors or doors requiring low-frequency service. Not for use with a door closer.

Features

Full Mortise
Wrought Steel
For Standard weight door
All hinges are ANSI template

Specifications

General Product Information:	PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)
Material:	Stainless Steel-Polished and Satin Finish
Material Gauge:	.134 ± .005
Size:	Height: 4.50 (+.000/-.015) Width: 4.50 (+.000/-.015)
Standard Screw Size:	FHMS - 12-24 x 1/2" FHWS - 12 x 1-1/4"
Packing Information:	One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton 16 unit carton or 48 hinges per master shipping carton 1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available
Manufacturer:	PBB Inc.
