Description

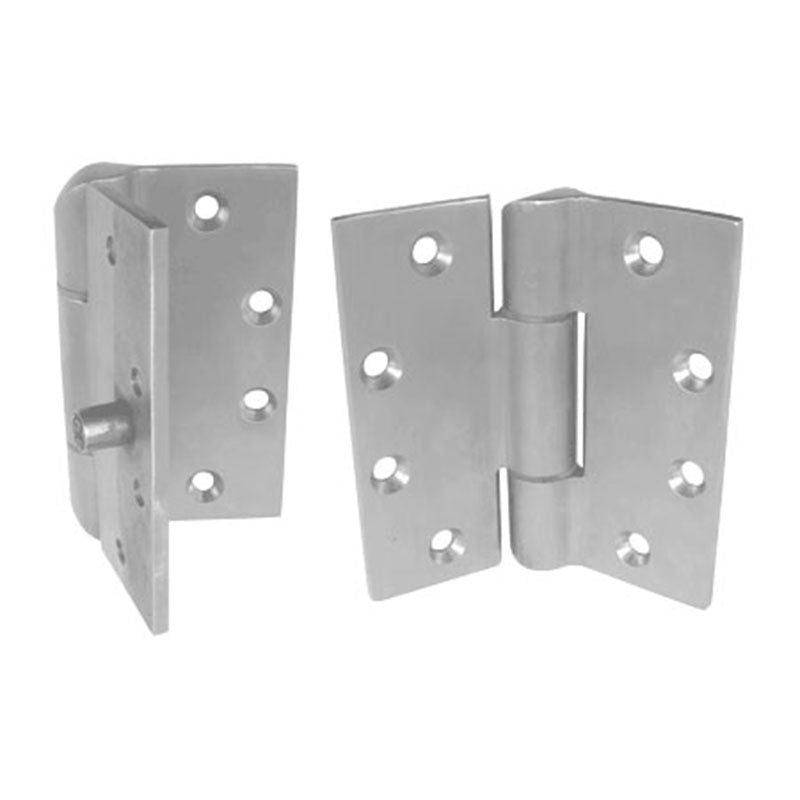

The PBB PH51 4-1/2" x 4-1/2" US32D is a 3-Knuckle, Full Mortise, Heavy Weight Concealed Bearing Hinge, For use on heavy doors or doors receiving high-frequency usage. Concealed bearing-type hinges must be used on doors in conjunction with door closers and on all fire-rated openings.
Features
- For heavy-weight doors receiving high-frequency service
- Welded hospital tipped ends
- Cast stainless steel base material
- Welded hospital tipped ends
- For heavy-weight doors receiving high-frequency service
- For schools, hospitals, or other public buildings where security requirements exist
- Concealed bearing for trouble free long life application
- Reverse security stud casted into both leaves for added security feature
- All hinges are ANSI template
Specifications
| General Product Information: | PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
| Material: | Stainless Steel (ANSI A5111) |
| Hinge Swaging: | A standard swaging of our standard weight full mortise hinge when closed to parallel position provides a 1/16” clearance between leaves. |
| Material Gauge: | 0.190 |
| Size: |
Height: 4.50 (+.000/-.015) Width: 4.50 (+.000/-.015) |
| Manufacturer: | PBB Inc. |
Certifications
| ANSI: | A8111 |
