PBB SCBB81-4-1/2-Square Swing Clear Hinge Full Mortise Ball Bearing

  • SKU: SCBB8145SQUS26D

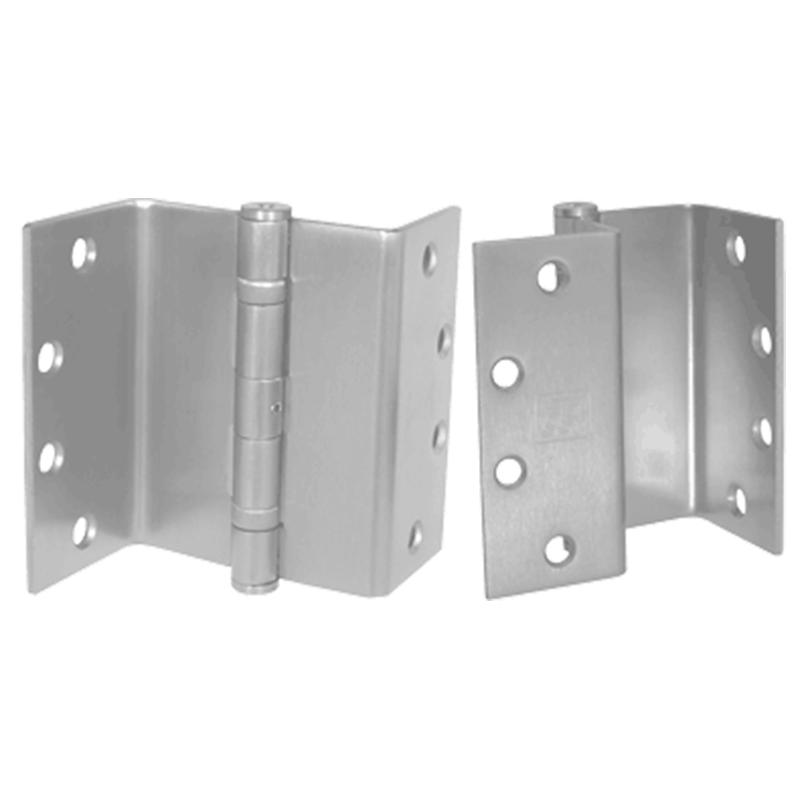

PBB SCBB81 4.5 inch Swing Clear Hinge Full Mortise Ball Bearing
All PBB Products

PBB SCBB81-4-1/2-Square Swing Clear Hinge Full Mortise Ball Bearing

  • SKU: SCBB8145SQUS26D
  • ✓
    In Stock
    In Stock
Your Price
$58.15/ea
Pbb Finish: US26D Dull Chromium (652)

Volume Discounts Discount
3 + 10% off
12 + 12% off
24 + 15% off

PBB SCBB81-4-1/2-Square Standard Weight Full Mortise Ball Bearing Swing Clear Hinge, 4-1/2 inch

This full mortise ball bearing hinge delivers commercial-grade performance with its 4-1/2 inch square design and swing clear mechanism. Built for standard-weight door applications, the ball bearing construction minimizes friction while supporting smooth, consistent operation in high-use settings. The square profile provides a clean aesthetic alongside the durability professionals demand for institutional and commercial installations.

Features:

  • For medium-weight doors receiving average frequency service
  • Full Mortise, For Square Door
  • Steel
  • All hinges are ANSI template
  • All swing clear hinges are made for reversible applications
  • Designed to swing doors completely clear of the opening when the door is opened 95 º
  • When opened 90 º door projects 3/32" last stop of the jamb
  • Recommended for 3'0" x 7'0" x 1 3/4" doors not to exceed 150 lbs

General Product Information:

PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)

Material:

Steel-Polished and Plated or Bonderized and Prime Coated for Painting

Clearance:

Minimum Clearance Required
Dimension (inches) 2-1/8"

Material Gauge:

.134 ± .005 for 4 1/2"

Size:

4.50 (+.000/-.015) for 4 1/2"

Standard Screw Size:

FHMS - 12-24 x 1/2"
FHWS - 12 x 1 1/4"

Packing Information:

One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton.
12-unit carton or 36 hinges per master shipping carton.
1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS are also available.



Manufacturer:

PBB Inc.

ANSI:

A8122
