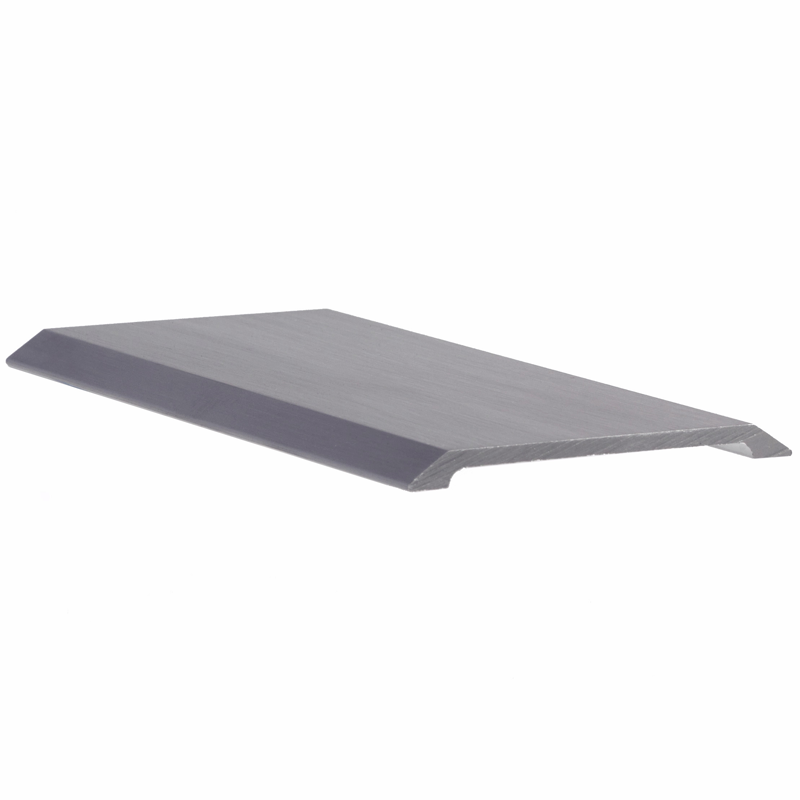

Pemko 151A Saddle Thresholds are 3 Inch Width, and 1/4" Inch Height, and are available in 36", 48", 72" and 96" lengths in Mill Finish Aluminum Finish Fire Rated - UL10C - Positive Pressure
Barrier-Free (ADA) – Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 for:
Overall height is no greater than ½”
A vertical rise no more than ¼” and/or change in elevation is beveled with a slope of 1:2
Does not require more than 5lbs of operating force
Non-Skid/Pemkote – Meets the requirements of ASTM D 2047, UL 410, and Federal Specifications PF-430C for high static coefficient of friction resulting in a slip resistance surface
Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
BHMA Certified – Tested for performance with regard to the requirements in
ANSI/BHMA A156.21 – Thresholds
Specifications
Available Finishes:
A - Mill Finish Aluminum Aluminum D - Dark Bronze Anodized Aluminum G - Gold Anodized Aluminum
Width:
3"
Height:
1/4" (6.4 mm)
Manufacturer:
Pemko
Certifications:
BHMA:
BHMA Certified
UL:
Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure
