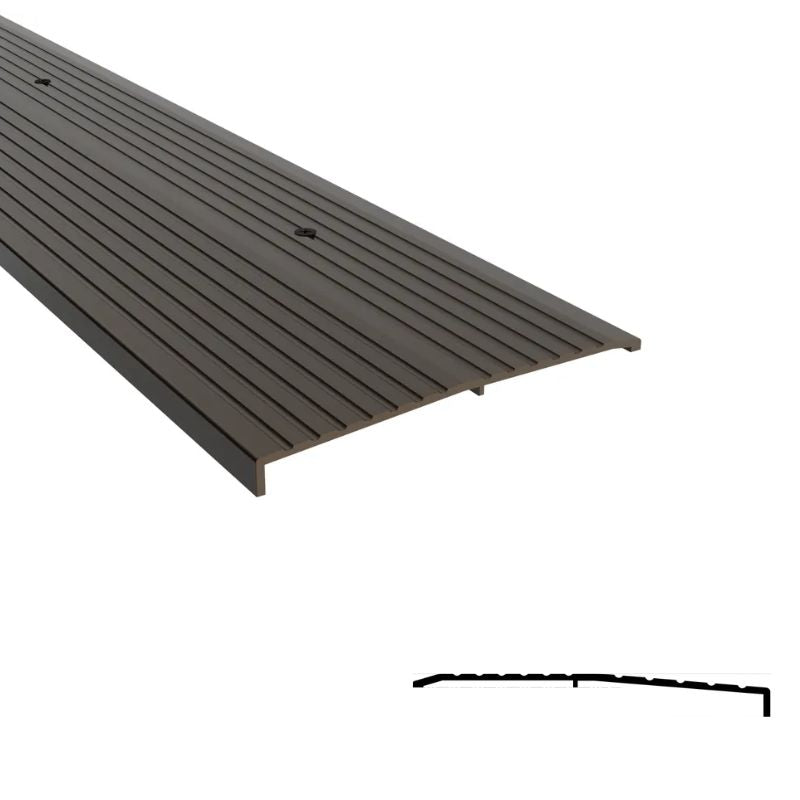

The Pemko 257-10BE Barrier Free Ramp Saddle Threshold is designed to provide easy access for those with mobility challenges. With a width of 6" and a height of 3/4", this threshold is both functional and aesthetically pleasing with its Satin Bronze Powder Coat finish.
Pemko 257 Features:
Only ADA compliant when used in conjunction with 259_
Use 257_ and 259_ together, or use 257_ with an abutted 1:12 concrete slope.
Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
When used as a cover plate assembly (see Commercial Thresholds section), a longer spindle may be required.
Used in an offset condition
Specifications
Available Finishes:
10BE - Satin Bronze Powder Coat
Width:
6" (152.4 mm)
Height:
1/2" (12.7 mm)
Manufacturer:
Pemko
Certifications
BHMA:
BHMA Certified
UL:
Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure
