Description

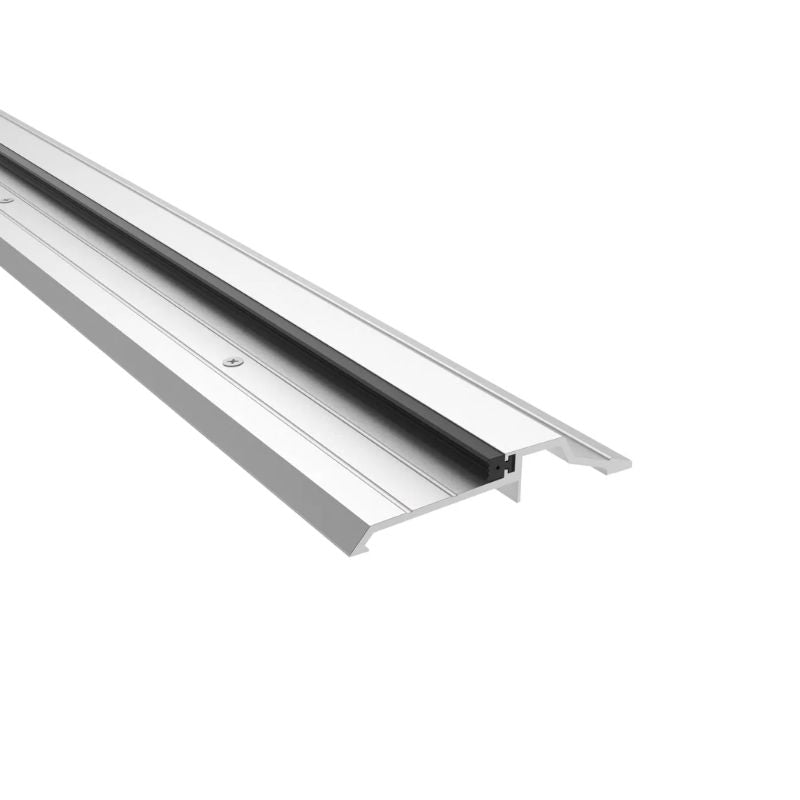

The Pemko 277AR Latching Panic Exit Saddles Have a 5" Width, and a 7/8" Height. The Pemko 277AR Latching Panic Commercial thresholds are designed to work in conjunction with surface applied vertical rod exit devices and come with a Sponge Neoprene Insert Mill Finish Aluminum. 277AR Latching Panic thresholds are also used to provide a doorstop and seal at the bottom of the door, Lengths Available are 36", 48", 72", And 96" in Mill Finish Aluminum.
Features Pemko 277AR Latching Panic Exit Saddle
- Latching Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
Specifications
| Available Finishes: | A - Mill Finish Aluminum Aluminum D - Dark Bronze Anodized Aluminum |
| Insert: | Sponge Neoprene |
| Width: | 5" (127.0 mm) |
| Height: | 7/8" (22.2 mm) |
| Manufacturer: | Pemko |
Certifications
| BHMA: | BHMA Certified |
| UL: | Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | Air Infiltration Tested Sound Tested - ASTM E90 |
